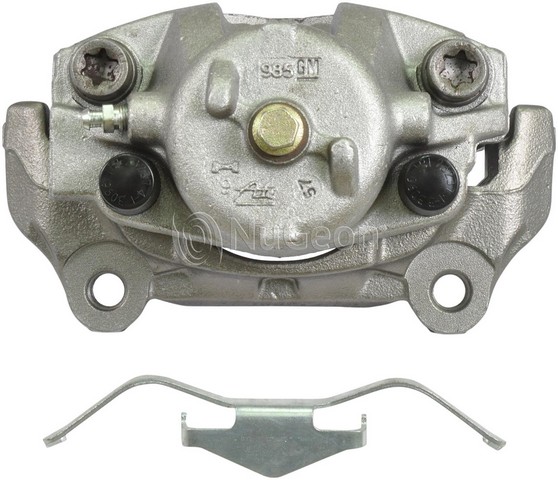

Nugeon 99-09116A front left brake caliper for the 2003-2005 Saab 9-3 clamps the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured.
- Floating caliper with one 57 mm piston
- Phenolic piston material
- Aluminum caliper casting
- Rust-preventative finish on the caliper
Quick facts
- Part: Nugeon 99-09116A brake caliper
- Also called: disc brake caliper
- Fits: 2003-2005 Saab 9-3
- Position: Front left
- Material: Aluminum
- Condition: Remanufactured
A sticking or leaking caliper can show as pulling to one side, uneven pad wear or fluid around the dust boot. A worn pad or a stuck slide can look the same from the driver's seat, so have a shop find the cause before you replace it. Calipers are normally replaced in pairs, one on each side of the axle; this listing is the front left only, and the front right is ordered separately.
Fits
This is a direct-fit replacement caliper for the front left of the 2003-2005 Saab 9-3.
Specifications
Fit and size
- Position: Front left
- Quantity per application: 1
- Piston diameter: 57 mm (2.244 in), 1 piston
- Inlet fitting: banjo bolt, M12-1.0 thread (port M12-1.0 x 20.9)
- Bleeder screw thread: M10-1.0

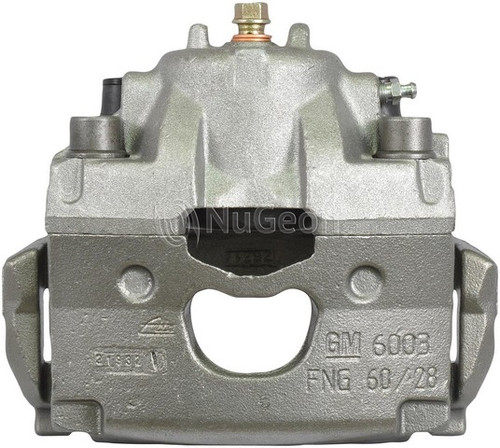

- Housing cast numbers: 985, 6003, FNG, 57/25
Build and materials
- Caliper type: Floating
- Casting material: Aluminum
- Piston material: Phenolic
- Finish: Rust preventative
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left brake caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, bracket mounting bolts, mounting bolts, pad hardware, anti-squeal shims, wear sensors and the bleeder screw cap are not included, so plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is the Nugeon 99-09116A the right caliper for a 2003-2005 Saab 9-3?
Yes. Nugeon 99-09116A is the front left caliper for the 2003-2005 Saab 9-3. The front right side is a separate part.
Does this Nugeon caliper come with the bracket and slides?
Yes. The Nugeon 99-09116A comes with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads and bracket mounting bolts are not included.
What piston size and thread sizes does this disc brake caliper have?
This caliper has one phenolic piston, 57 mm (2.244 in) across. The bleeder screw thread is M10-1.0 and the banjo bolt inlet is M12-1.0.
How can I tell if the front left brake caliper is sticking or leaking?
Signs can include the car pulling to one side when braking, uneven pad wear or brake fluid around the dust boot. A shop can confirm whether the caliper is the cause.
Which cast numbers are on the housing of this caliper?
The housing cast numbers listed for Nugeon 99-09116A are 985, 6003, FNG and 57/25.
