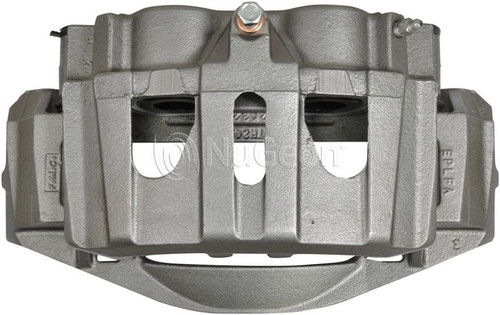

Nugeon 99-17963A rear right brake caliper for the 2008-2019 Ford E-450 Super Duty squeezes the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is the floating type.
- Two phenolic pistons in a floating caliper body
- Cast iron housing with a rust preventative finish
- Bracket, caliper slides, dust boots and caliper and pad hardware included
- Banjo bolt inlet fitting with a 3/8-24 thread, crush washers included
- Bleeder screw and bleeder screw cap included
Quick facts
- Part: Nugeon 99-17963A brake caliper
- Also called: disc brake caliper
- Fits: 2008-2019 Ford E-450 Super Duty and 2021-2026 Ford E-450 Super Duty
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A rear brake that drags, a pull to one side, or brake fluid around the dust boot can mean the caliper is sticking or leaking. Those signs alone do not prove the caliper is at fault, since a worn brake hose can also leave a brake dragging.
Fits
It fits the 2008-2019 Ford E-450 Super Duty and the 2021-2026 Ford E-450 Super Duty. This listing is one caliper for the rear right; the rear left is a separate part, and the two are normally done together on that axle.
Specifications
Fit and size
- Position: Rear right
- Quantity per vehicle: 1
- Piston diameter: 54 mm (2.13 in)
- Bleeder screw thread: M10-1.0
- Inlet thread size: 3/8-24
Build and materials
- Condition: Remanufactured
- Caliper type: Floating
- Casting material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Inlet fitting: Banjo bolt
- Country of origin: Mexico
In the box
One brake caliper, which is all the rear right of the vehicle takes, with its bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw with cap, and crush washers. Pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included, so plan on new mounting bolts rather than reusing the old ones.
Interchange / FMSI:
FMSI: D1330
Frequently Asked Questions
Will this brake caliper work on the 2021-2026 Ford E-450 Super Duty?
Yes. Nugeon 99-17963A is a rear right caliper that fits the 2021-2026 Ford E-450 Super Duty, as well as the 2008-2019 Ford E-450 Super Duty.
Does the Nugeon caliper come with brake pads?
No. This listing is the caliper with its bracket, slides, dust boots and hardware. Pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included.
What size are the pistons and bleeder screw on this disc brake caliper?
This rear right caliper has two phenolic pistons, each 54 mm (2.13 in) across, and an M10-1.0 bleeder screw.
What are signs a floating rear caliper like this one is sticking?
A sticking caliper can show up as a pull to one side when braking, a dragging feel, or one pad worn thinner than its mate during a brake service. A shop can confirm it.
Is the Nugeon 99-17963A caliper remanufactured?
Yes. Nugeon 99-17963A is a remanufactured caliper, and its country of origin is Mexico.
