Remanufactured Front Right Brake Caliper for 2006-2018 Toyota RAV4 & More - TERREPOWER 99P01697B

$156.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 99P01697B
    UPC: 736749708203
    Condition: Refurbished
    Weight: 23.00 LBS
    Item Package Quantity: 1
    $156.99
    Adding to cart… The item has been added

    Have questions?

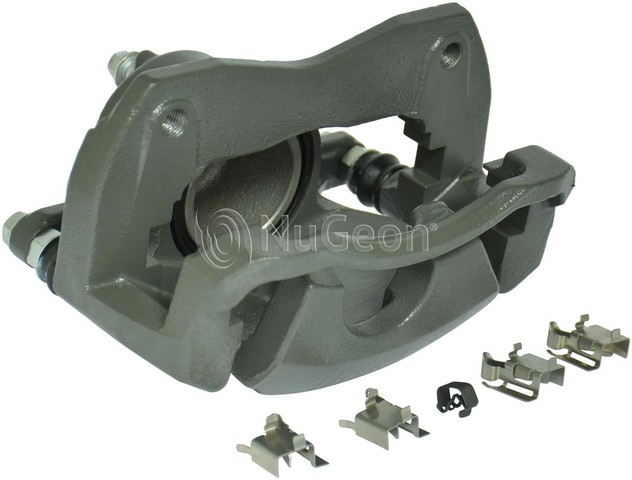

    Nugeon Disc Brake Caliper P/N:99P01697B
    Nugeon Disc Brake Caliper P/N:99P01697B
    $156.99
    $156.99

    TERREPOWER 99P01697B front right brake caliper for the 2006-2018 Toyota RAV4 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured unit, also called a disc brake caliper, is meant to replace a front right caliper that leaks or sticks.

    • Floating caliper design with a single steel piston
    • Cast iron caliper with an E-coated finish
    • Banjo inlet fitting for the brake line
    • Cast numbers 63-28 Z 22 on the housing and 28V L 2058 28V on the bracket

    Quick facts

    • Part: TERREPOWER 99P01697B brake caliper
    • Also called: disc brake caliper
    • Fits: 2006-2018 Toyota RAV4 and other vehicles
    • Position: Front right
    • Material: Cast iron
    • Condition: Remanufactured

    A caliper that leaks or sticks can show up as the car pulling to one side when braking, pads wearing unevenly, or fluid around the dust boot. These signs alone do not prove the caliper is the problem; a collapsed brake hose can also make a car pull to one side.

    Fits

    This front right caliper is a direct-fit replacement for the 2006-2018 Toyota RAV4, the 2016-2020 Toyota Mirai and the 2017-2018 Toyota Corolla iM. The 2006-2018 Toyota RAV4 takes one on this side. This listing is one caliper for the front right; the front left of that axle is a separate part and is normally done at the same time.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per vehicle: 1
    • Piston outside diameter: 63.37 mm (2.5 in)
    • Piston diameter: 63 mm (2.48 in)
    • Inlet port thread: M10-1.0 x 23.4 mm
    • Bleeder screw thread: M7-1.0

    Build and materials

    • Caliper type: Floating
    • Condition: Remanufactured
    • Caliper casting material: Cast iron
    • Piston material: Steel
    • Finish: E-coated
    • Caliper manufacturer: Advics
    • Country of origin: Mexico

    In the box

    One caliper with its bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included; plan on new mounting bolts, since the old ones may not be reusable.

    Interchange / FMSI:

    FMSI: D1211

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the 2006-2018 Toyota RAV4 brake caliper 99P01697B for the front right wheel?

    Yes. TERREPOWER 99P01697B is a front right caliper and fits the 2006-2018 Toyota RAV4. For any other model, look up your car in the "Vehicles it fits" section.

    Does this remanufactured caliper come with a bracket and brake pads?

    It comes with the bracket, caliper slides, dust boots, hardware and bleeder screw. Brake pads, anti-squeal shims, wear sensors and bracket mounting bolts are not included.

    What size piston does the 99P01697B caliper have?

    TERREPOWER 99P01697B has one steel piston, 63 mm (2.48 in) in diameter, in a floating caliper with a banjo inlet fitting.

    How can I tell if a front caliper is sticking or leaking?

    Common signs are the car pulling to one side under braking, one pad wearing faster than the other at a brake service, or wetness around the dust boot. A shop can confirm a stuck piston or slides.

    What thread sizes does this caliper use for the bleeder screw and brake line?

    The bleeder screw is M7-1.0 and is included, though its cap is not. The banjo inlet port thread is M10-1.0 x 23.4 mm.
