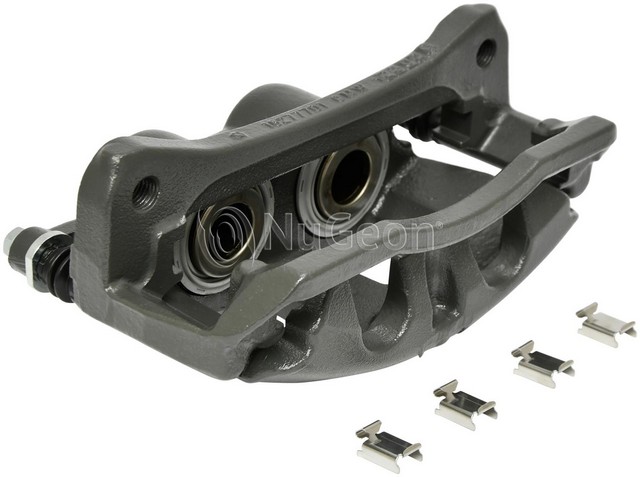

TERREPOWER 99P17753A rear right brake caliper for the 2011-2018 Ram 2500 and other vehicles clamps the pads against the rotor to slow the wheel. The caliper is remanufactured and has a banjo bolt inlet.
- Floating design with two phenolic pistons
- E-coated cast iron housing
- Mounting bracket, caliper slides and dust boots included
- Bleeder screw and bleeder screw cap included
Quick facts
- Part: TERREPOWER 99P17753A brake caliper
- Also called: disc brake caliper
- Fits: 2011-2018 Ram 2500 and other vehicles
- Position: Rear right
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as the truck pulling to one side, a rear pad wearing faster than its mate, or brake fluid around the caliper. These signs alone do not prove the caliper is at fault, since a collapsed brake hose can cause pulling too.
Fits
The vehicles it fits include the 2011-2018 Ram 2500, the 2009-2010 Dodge Ram 2500 and the 2011-2018 Ram 3500. This listing is one rear right caliper; the rear left is a separate part, and that axle is normally done at the same time. A 2011-2018 Ram 2500 takes one caliper at this position.
Specifications
Fit and size
- Position: Rear right
- Piston diameter: 45 mm (1.77 in)
- Piston quantity: 2
- Inlet fitting: Banjo bolt
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Phenolic
- Finish: E-coated
- Housing cast number: 15884101
- Bracket cast number: 16277701
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured rear right brake caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, crush washers, bleeder screw and bleeder screw cap. Brake pads, wear sensors, anti-squeal shims and bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Interchange / FMSI:
FMSI: D1400
Frequently Asked Questions
Does this rear right brake caliper fit the 2011-2018 Ram 2500?
Yes. TERREPOWER 99P17753A is a rear right caliper that fits the 2011-2018 Ram 2500. If your truck is not named here, look it up in the "Vehicles it fits" section.
Is this a brake caliper for the 2011-2018 Ram 3500?
Yes. This rear right caliper fits the 2011-2018 Ram 3500. The left side of that rear axle takes its own caliper, sold separately.
Does this remanufactured caliper come with brake pads and bolts?
No. TERREPOWER 99P17753A comes with its bracket, slides, dust boots, hardware, crush washers and bleeder screw with cap. Pads, wear sensors, shims and bracket mounting bolts are not included.
Is this disc brake caliper a floating design, and what size are its pistons?
Yes, it is a floating caliper with two phenolic pistons. Each piston measures 45 mm (1.77 in) across.
What thread does the inlet on this rear caliper take?
The banjo bolt inlet port has an M10-1.0 x 23.4 mm thread, and the bleeder screw is M10-1.0. Crush washers are included with the caliper.
