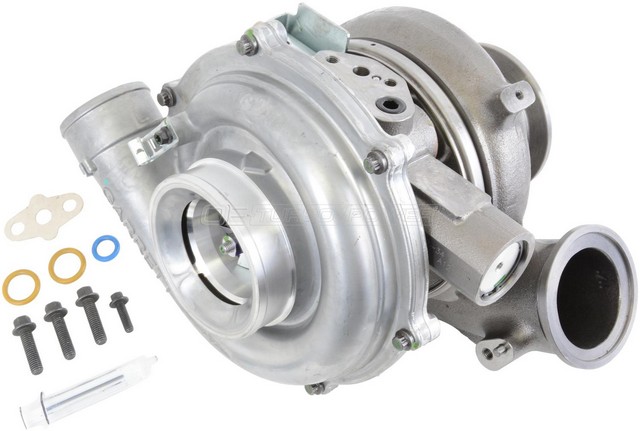

TERREPOWER D1004 turbocharger for the 2004-2005 Ford Excursion V8 6.0L and other vehicles uses exhaust flow to spin a compressor that pushes more air into the engine. This is a remanufactured unit, precisely calibrated to meet the durability, reliability and technology demands of complex engines, and it meets or exceeds OEM specs.
- Remanufactured high-performance turbocharger
- Variable geometry turbine with a control valve solenoid wastegate
- Journal bearing in an oil-cooled center housing
- Compressor A/R ratio of 0.58
Quick facts
- Part: TERREPOWER D1004 turbocharger
- Fits: 2004-2005 Ford Excursion V8 6.0L and other vehicles
- Material: housing matched to OE
- Condition: Remanufactured
Reduced power, a whining noise or smoke from the exhaust can mean the turbocharger is worn, though a split charge-air hose or a clogged air filter can also be behind them, so track down the cause before you replace it.
Fits
This turbocharger is listed for a wide range of Ford models, led by the 2004-2005 Ford Excursion V8 6.0L, the 2004-2005 Ford F-250 Super Duty V8 6.0L and the 2004-2005 Ford F-350 Super Duty V8 6.0L. The 2004-2005 Ford Excursion V8 6.0L takes one. Open the "Vehicles it fits" section and check your exact model and engine there.
Specifications
Fit and size
- Quantity per vehicle: 1
- Compressor inlet OD: 4.088 in (103.83 mm)
- Compressor outlet OD: 2.577 in (65.45 mm)
- Exhaust outlet OD: 4.251 in (107.97 mm)
Build and materials
- Turbine type: variable geometry
- Bearing type: journal
- Center housing cooling: oil cooled
- Wastegate type: control valve solenoid
- Housing material: matched to OE
- Condition: remanufactured
- Country of origin: United States
In the box
One turbocharger with its wastegate actuator, mounting bracket, mounting hardware and gasket or seal. The oil supply line is not included.
Frequently Asked Questions
Will the TERREPOWER D1004 work as a Ford F-250 Super Duty turbocharger on a 2004-2005 V8 6.0L?
Yes. TERREPOWER D1004 is listed for the 2004-2005 Ford F-250 Super Duty V8 6.0L. The "Vehicles it fits" section shows the other Ford models it fits.
Does this turbocharger come with the wastegate actuator and mounting hardware?
Yes. It includes the wastegate actuator, mounting bracket, mounting hardware and a gasket or seal. The oil supply line is not included.
What turbine and bearing type does this turbocharger have?
It has a variable geometry turbine with a control valve solenoid wastegate, and a journal bearing in an oil-cooled center housing.
What are signs a variable geometry turbocharger like this one is worn?
Reduced power, a whine or exhaust smoke can be signs of wear. With the engine off and cool you can look for oil leaks around the housing; a shop can test boost and the boost control.
What are the compressor and exhaust outlet sizes of the D1004 turbocharger?
The TERREPOWER D1004 has a 4.088 in (103.83 mm) compressor inlet OD, a 2.577 in (65.45 mm) compressor outlet OD and a 4.251 in (107.97 mm) exhaust outlet OD.
