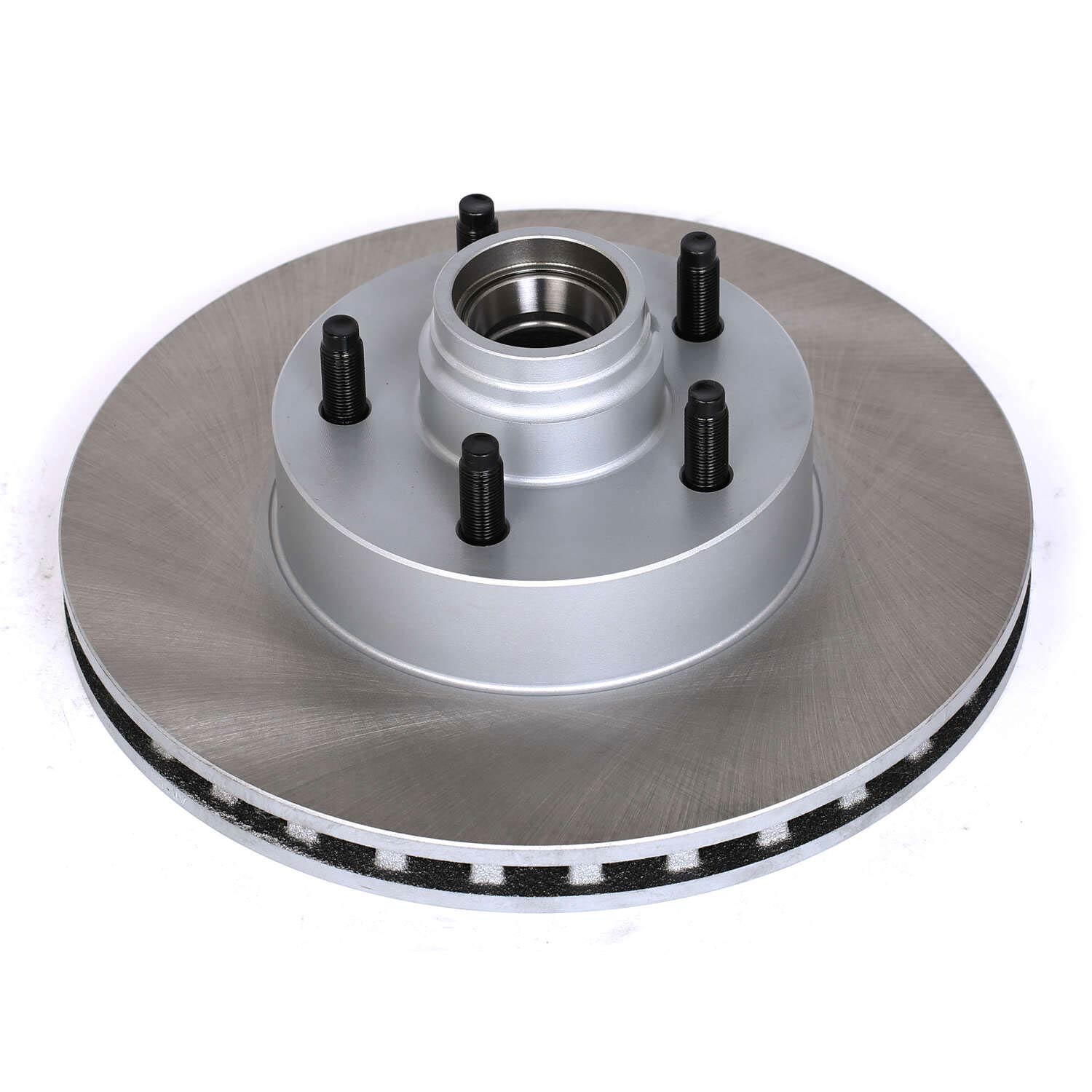

PowerStop AR8551SCR front brake rotor for the 1998-2009 Ford Ranger and other vehicles gives the brake pads a vented surface to clamp against when you brake. It is a full-cast rotor from the PowerStop Coated Hat and Edge line.
- Silver epoxy coating on the hat, outer edge and vanes, the areas prone to corrosion
- Corrosion-resistant coating helps keep the rotor looking good behind alloy wheels
- Held to strict tolerances for DTV and runout for smooth, quiet performance
- 100% dynamic mill balanced
Quick facts
- Part: PowerStop AR8551SCR brake rotor
- Also called: disc brake rotor
- Fits: 1998-2009 Ford Ranger and other vehicles
- Position: Front
- Condition: New
A pulsing brake pedal, steering wheel shake while braking or visible grooves in the rotor face can mean the rotor is worn. Those signs alone do not prove the rotor is at fault, since a sticking caliper can produce a similar shake.
Fits
The 1998-2009 Ford Ranger, 1995-2001 Ford Explorer and 2001-2010 Mazda B2300 all take this rotor, along with other vehicles. It is a direct bolt-on replacement for original equipment, and its weight and vane count match the original design. Owners of other models can find their year and model in the "Vehicles it fits" section. This listing is one rotor, and the other side of the front axle is normally replaced at the same time.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Outside diameter: 286.70 mm
- Bolt circle: 114.30 mm (4.50 in), 5 lug holes
- Nominal thickness: 26.30 mm (1.04 in)
- Discard thickness: 24.50 mm (0.96 in)
- Overall height: 108.00 mm (4.25 in)
Build and materials
- Type: vented, full cast
- Surface: smooth
- Coating: silver epoxy on the hat, outer edge and vanes
- ABS tone ring: included
- Balancing: mill balanced
- Condition: new
- Country of origin: China
In the box
One front brake rotor, sold individually. These vehicles take two on the front axle.
Frequently Asked Questions
Is the PowerStop AR8551SCR a Ford Explorer brake rotor for 1995-2001 models?
Yes. PowerStop AR8551SCR is a front rotor for the 1995-2001 Ford Explorer and installs as a direct bolt-on replacement. The front axle takes two.
Do these Ford Ranger rotors fit the 1998-2009 model years?
Yes. This front rotor is made for the 1998-2009 Ford Ranger, and it comes with the ABS tone ring included.
Are PowerStop brake pads and rotors included together in this listing?
No. This PowerStop AR8551SCR listing is one front rotor sold individually; brake pads are sold separately.
Is this PowerStop disc brake rotor vented or solid?
It is vented, with full-cast construction and a smooth surface. Outside diameter is 286.70 mm and nominal thickness is 26.30 mm.
At what thickness is this front rotor worn out?
The discard thickness is 24.50 mm (0.96 in). A new rotor measures 26.30 mm (1.04 in), so a rotor at or below 24.50 mm is due for replacement.
