Connecting Rod Bearing for 1968-1984 Cadillac Commercial Chassis & More - Sealed Power 3345P

$21.99

Vehicles this part fits

    Part number: 3345P
    UPC: 614046330085
    Condition: New
    Weight: 0.10 LBS
    Item Package Quantity: 1
    $21.99
    Adding to cart… The item has been added

    Have questions?

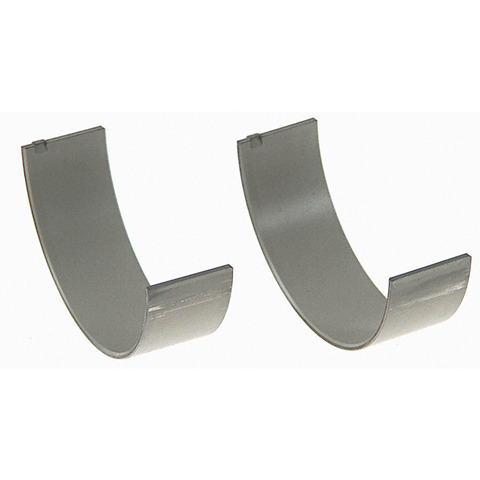

    Sealed Power Engine Connecting Rod Bearing P/N:3345P
    Sealed Power Engine Connecting Rod Bearing P/N:3345P
    $21.99
    $21.99

    Sealed Power 3345P connecting rod bearing for the 1968-1974 Cadillac Commercial Chassis V8 7.7L, the 1975-1976 Commercial Chassis V8 8.2L, the 1977-1979 Commercial Chassis V8 7.0L, the 1980-1984 Commercial Chassis V8 6.0L and other vehicles gives each connecting rod a bearing surface on the crankshaft journal.

    • Steel-backed bronze alloy lining with overplate
    • Popular for fatigue resistance and strength
    • Conformability for older engine applications
    • Oil clearance of 0.0130 to 0.0710 mm between the bearing and the shaft

    Quick facts

    • Part: Sealed Power 3345P connecting rod bearing
    • Also called: engine connecting rod bearing
    • Fits: the 1968-1974 Cadillac Commercial Chassis V8 7.7L, the 1975-1976 Commercial Chassis V8 8.2L, the 1977-1979 Commercial Chassis V8 7.0L, the 1980-1984 Commercial Chassis V8 6.0L and other vehicles
    • Condition: New

    A knocking noise from the lower engine, low oil pressure or metal flakes in the oil can mean a rod bearing is worn. Those signs have other causes too, so find the cause first: with the engine off, check the oil level and the oil on the dipstick, and leave deeper tests to a shop.

    Fits

    This bearing is listed for a wide range of Cadillac, Oldsmobile and GMC models, led by the 1968-1974 Cadillac Fleetwood V8 7.7L, the 1975-1976 Fleetwood V8 8.2L, the 1977-1979 Fleetwood V8 7.0L and the 1980-1984 Fleetwood V8 6.0L, plus the 1968-1974 Cadillac DeVille V8 7.7L, the 1975-1976 DeVille V8 8.2L, the 1977-1979 DeVille V8 7.0L and the 1980-1981 DeVille V8 6.0L. If your car is not named here, look up its year, make and engine in the "Vehicles it fits" section on this page. The 1968-1974 Cadillac Commercial Chassis V8 7.7L takes eight bearings.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Sold as: one pair
    • Housing bore: 66.6570-66.6750 mm (2.6243-2.6250 in)
    • Standard shaft size: 63.4750-63.5000 mm (2.4990-2.5000 in)
    • Wall thickness (max): 1.5720 mm (0.0619 in)
    • Overall length (max): 21.1100 mm (0.8310 in)
    • Oil clearance: 0.0130-0.0710 mm

    Build and materials

    • Lining: steel-backed bronze alloy with overplate
    • Condition: New
    • Country of origin: Mexico

    In the box

    One pair of connecting rod bearings.

    Interchange: CB542P

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CB542P

    Frequently Asked Questions

    Is the Sealed Power 3345P connecting rod bearing right for the 1968-1974 Cadillac Fleetwood V8 7.7L?

    Yes, Sealed Power 3345P is listed for the 1968-1974 Cadillac Fleetwood V8 7.7L; for other cars, look up the year and engine in the "Vehicles it fits" section.

    What are the housing bore and shaft sizes on the 3345P?

    Sealed Power 3345P has a housing bore of 66.6570-66.6750 mm (2.6243-2.6250 in) and a standard shaft size of 63.4750-63.5000 mm (2.4990-2.5000 in).

    Is this engine connecting rod bearing a single bearing or a pair?

    It is a pair. A V8 in the fitment takes eight bearings in total.

    What is the lining on this rod bearing made of?

    It is a steel-backed bronze alloy lining with overplate. The material offers less resistance to wear and corrosion than other materials, and it provides the conformability older applications need.

    Does Sealed Power 3345P replace CB542P?

    Yes. CB542P is listed as an interchange number for the Sealed Power 3345P connecting rod bearing.
