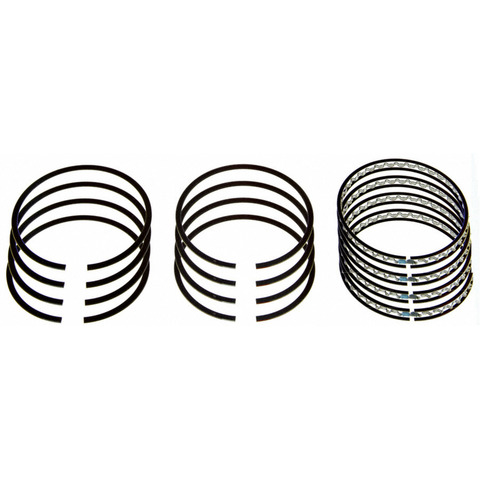

Seal every cylinder and keep oil consumption in check with the Sealed Power Engine Piston Ring Set E-1019KC, a premium-grade, application-specific ring set for the 1.8L four-cylinder engine. It drops in as a direct-fit replacement for the 2000-2002 Chevrolet Prizm [L4-1.8L], 2000-2005 Toyota Celica [L4-1.8L], 2000-2008 Toyota Corolla [L4-1.8L], 2000-2005 Toyota MR2 Spyder [L4-1.8L], 2003-2008 Pontiac Vibe [L4-1.8L] and 2003-2008 Toyota Matrix [L4-1.8L]. One set services a 4-cylinder engine.
Chrome-plated top ring: steel top ring with chrome-plated facings for enhanced performance under demanding conditions.
Second ring: cast-iron second ring with a reverse-torsional face that seats quickly, controls inter-ring pressure to improve cylinder sealing, transfers heat from the piston to the cylinder and aids oil control.
Oil ring: 3-piece flex-vent oil ring designed to keep tension uniform while assuring a positive seal.
Ring widths: groove widths of 1.2 x 1.2 x 3.0 mm — 1.20 mm top and second rings and a 3.00 mm oil ring; standard size (not oversized) and not file-fit.
Signs your rings may need replacing include blue exhaust smoke, elevated oil consumption and loss of compression; diagnose the cause before replacing. The box includes compression rings, rails and an oil spacer. Made in the United States.
Manufacturer part number E-1019KC (also E1019KC).
This part cross-references / interchanges with the following part numbers:
Direct-fit for the 1.8L four-cylinder in the 2000-2002 Chevrolet Prizm, 2000-2005 Toyota Celica and MR2 Spyder, 2000-2008 Corolla, and 2003-2008 Pontiac Vibe and Toyota Matrix. See the Buyer's Guide tab.
What's included in the box?
The set includes chrome-plated steel top compression rings, cast-iron second rings, and 3-piece flex-vent oil rings with rails and an oil spacer. It services one 4-cylinder engine.
What are the ring widths?
Ring set groove widths are 1.2 x 1.2 x 3.0 mm — the top and second rings are 1.20 mm and the oil ring is 3.00 mm. The set is standard size (not oversized) and not file-fit.
What are signs my piston rings may need replacing?
Blue exhaust smoke, high oil consumption and low compression can be signs of worn rings. Diagnose the cause first, since these symptoms can have other sources.
Where is this ring set made?
The Sealed Power E-1019KC piston ring set has a country of origin of the United States.
