Piston Set for 1982-1985 Chevrolet Impala & More - Sealed Power 534NP

$362.99

Vehicles this part fits

    Part number: 534NP
    UPC: 724956362684
    Condition: New
    Weight: 5.84 LBS
    Pack of 8
    $362.99
    Adding to cart… The item has been added

    Have questions?

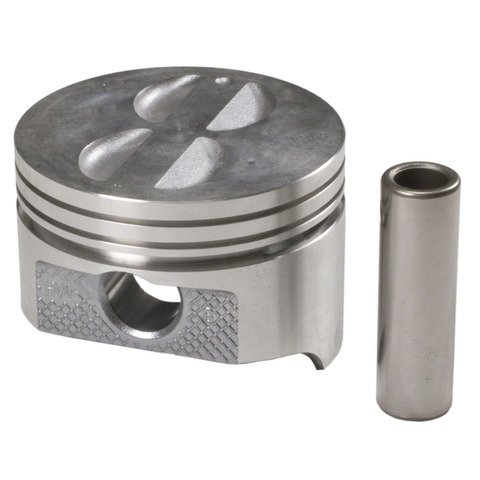

    Sealed Power Engine Piston Set P/N:534NP (Pack of 8)
    Sealed Power Engine Piston Set P/N:534NP (Pack of 8)
    $362.99
    $362.99

    Sealed Power 534NP piston set for the 1982-1985 Chevrolet Impala V8 5.0L and other vehicles carries combustion pressure from the cylinder down to the connecting rod. These Sealed Power pistons match the performance and dependability of original equipment pistons and meet OEM specifications or better.

    • Cast with FM132 Eutectic proprietary alloy
    • Cast aluminum construction with a flat head
    • Bore diameter of 3.7360 in with a compression height of 1.540 in
    • Piston pin outside diameter of 0.9275 in (23.559 mm)
    • Pin offset of 0.06 in (1.524 mm)

    Quick facts

    • Part: Sealed Power 534NP piston set
    • Also called: engine piston set
    • Fits: 1982-1985 Chevrolet Impala V8 5.0L and other vehicles
    • Material: Cast aluminum
    • Condition: New

    Worn pistons can show up as oil burning, a knock or lost compression. Worn rings, valve seals or a leaking head gasket can be behind those signs too, so find the cause before you buy. The 5.0L V8 takes eight pistons, one per cylinder.

    Fits

    This set is listed for a wide range of Chevrolet, Buick, Oldsmobile and Pontiac models, including the 1982-1983 Chevrolet Malibu V8 5.0L and the 1982-1986 Chevrolet Camaro V8 5.0L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Oversized: No
    • Bore diameter: 3.7360 in
    • Compression height: 1.540 in
    • Piston pin outside diameter: 0.9275 in (23.559 mm)
    • Pin offset: 0.06 in (1.524 mm)
    • Top compression ring thickness: 0.0781 in
    • Second compression ring thickness: 0.0781 in
    • Oil ring thickness: 0.1875 in

    Build and materials

    • Type: Cast piston set
    • Piston material: Cast aluminum
    • Piston head type: Flat
    • Grade: Premium
    • Condition: New
    • Country of origin: United States

    In the box

    Assembly lubricant is not included.

    Interchange: P417 · P417STD · 91466 · TC2222 · P3199 · 2242222 · 1170P · 14028988 · 14044649 · 14044650 · 14081252 · 14081291 · 9049P · 1466 · 8232C · Z8232C · Z8232CSTD

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P417, P417STD, 91466, TC2222, P3199, 2242222, 1170P, 14028988, 14044649, 14044650, 14081252, 14081291, 9049P, 1466, 8232C, Z8232C, Z8232CSTD

    Frequently Asked Questions

    Is the Sealed Power 534NP piston set right for the 1982-1985 Chevrolet Impala V8 5.0L?

    Yes. Sealed Power 534NP is listed for the 1982-1985 Chevrolet Impala V8 5.0L, which has eight cylinders and takes eight pistons.

    Are Sealed Power cast pistons made of aluminum?

    Yes. This piston is cast aluminum, cast with FM132 Eutectic proprietary alloy, and has a flat head.

    Is the Sealed Power 534NP engine piston set an oversized set?

    No. Sealed Power 534NP is not oversized. Its bore diameter is 3.7360 in.

    Does this Sealed Power engine piston come with assembly lubricant?

    No. Assembly lubricant is not included with this piston set.

    What is the piston pin diameter on the Sealed Power 534NP?

    The piston pin outside diameter is 0.9275 in (23.559 mm), and the pin offset is 0.06 in (1.524 mm).
