Piston Set for 2014-2021 Chevrolet Silverado 1500 & More - Sealed H1551CPALR .50MM

$535.99

Vehicles this part fits

    Part number: H1551CPALR.50MM
    UPC: 019826264893
    Condition: New
    Weight: 9.70 LBS
    Pack of 6
    $535.99
    Adding to cart… The item has been added

    Have questions?

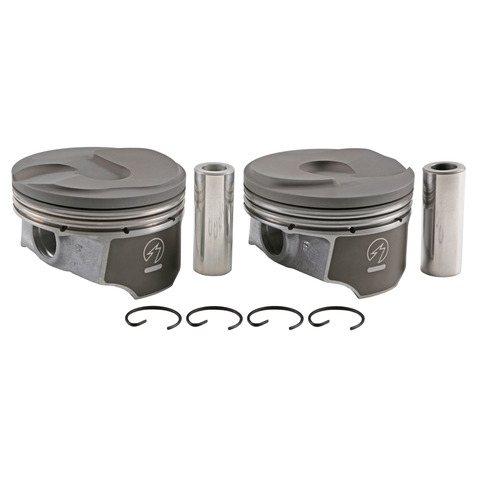

    Sealed Power Engine Piston Set P/N:H1551CPALR .50MM (Pack of 6)
    Sealed Power Engine Piston Set P/N:H1551CPALR .50MM (Pack of 6)
    $535.99
    $535.99

    Sealed H1551CPALR .50MM piston set for the 2014-2021 Chevrolet Silverado 1500 V6 4.3L and other vehicles replaces the pistons that take combustion pressure in the cylinders. It is a 0.50 mm oversize set.

    • Hypereutectic pistons cast from S2N proprietary alloy
    • Graphite-coated skirt helps prevent scuffing of the skirt and cylinder wall
    • Anodized ring grooves are CNC machined for flatness

    Quick facts

    • Part: Sealed H1551CPALR .50MM piston set
    • Also called: engine piston set
    • Fits: 2014-2021 Chevrolet Silverado 1500 V6 4.3L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Worn pistons can show up as an engine knock, oil use or low compression. Before you replace the pistons, rule out worn rings, leaking valves and a head gasket problem, since low compression can start in any of them. A shop can run a compression or leak-down test.

    Fits

    Other vehicles it fits include the 2014-2021 GMC Sierra 1500 V6 4.3L and the 2018-2023 Chevrolet Express 2500 V6 4.3L. Each cylinder takes one piston, so the V6 4.3L needs six. If your truck or van is not named here, find it in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Oversize: 0.50 mm
    • Quantity per application: 6
    • Compression height: 33.38 mm
    • Piston pin outside diameter: 23.95 mm
    • Top compression ring thickness: 1.20 mm
    • Second compression ring thickness: 1.20 mm

    Build and materials

    • Type: cast piston set
    • Material: Hypereutectic
    • Skirt coating: graphite
    • Ring grooves: anodized
    • Condition: New
    • Country of origin: India

    Interchange: 224-4043-0.50MM

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    224-4043-0.50MM

    Frequently Asked Questions

    Does the Sealed H1551CPALR .50MM piston set fit a 2014-2021 Chevrolet Silverado 1500 V6 4.3L?

    Yes. Sealed H1551CPALR .50MM fits the 2014-2021 Chevrolet Silverado 1500 V6 4.3L. For another truck or van, look in the "Vehicles it fits" section.

    Is this engine piston set oversized, and by how much?

    Yes. Sealed H1551CPALR .50MM is a 0.50 mm oversize set of cast hypereutectic pistons.

    What are the compression height and pin diameter of these pistons?

    This Sealed H1551CPALR .50MM set has a 33.38 mm compression height and a 23.95 mm piston pin outside diameter. The top and second compression rings are 1.20 mm thick.

    Which signs can mean a cast piston set is worn?

    An engine knock, oil use or low compression can be signs. A shop can test compression and leakdown to help find the cause.

    Do these pistons have a coated skirt?

    Yes. The graphite-coated skirt helps prevent scuffing of the skirt and cylinder wall, and the ring grooves are anodized and CNC machined.
