Serpentine Belt for 2014-2018 Subaru Forester & More - Dayco 5060770

$33.99

Vehicles this part fits

    Part number: 5060770
    UPC: 038244096091
    Condition: New
    Weight: 0.45 LBS
    Item Package Quantity: 1
    $33.99
    Adding to cart… The item has been added

    Have questions?

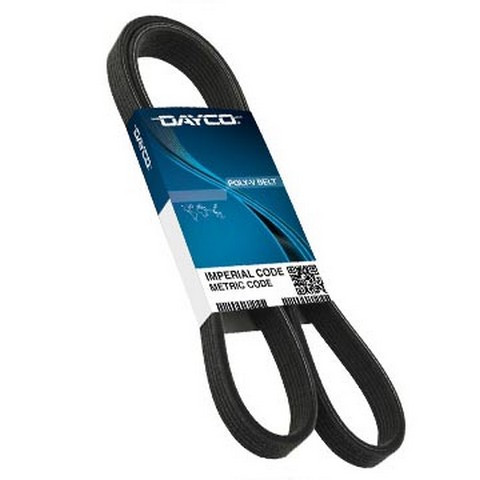

    Dayco Serpentine Belt P/N:5060770
    Dayco Serpentine Belt P/N:5060770
    $33.99
    $33.99

    Dayco 5060770 serpentine belt for the 2014-2018 Subaru Forester H4 2.5L and other vehicles carries engine power from the crankshaft to the belt-driven accessories. This Dayco drive belt wraps the crankshaft and accessory pulleys, and its ribbed underside grips them.

    • Straight rib profile with a K-section cross section and standard rib depth
    • EPDM material with aramid reinforcement
    • Operating temperature range of -42.7 C to 100 C (-45 F to 212 F)
    • Meets SAE J1459 and SAE J2432

    Quick facts

    • Part: Dayco 5060770 serpentine belt
    • Fits: 2014-2018 Subaru Forester H4 2.5L and other vehicles
    • Position: Air conditioning, main drive
    • Material: EPDM, aramid reinforced
    • Condition: New

    Cracks across the ribs, frayed edges, a glazed shiny underside or a squeal from the belt area can mean the belt is worn. With the engine off and cool, look over the ribs and edges for those marks. If the belt is the cause, this one replaces it, but a worn pulley or tensioner can make similar noises, so look those over too.

    Fits

    The 2014-2018 Subaru Forester H4 2.5L, the 2011-2020 Dodge Grand Caravan and the 2011-2019 Dodge Journey V6 3.6L are among the vehicles this belt fits, along with many others. If your car is not named here, look it up in the "Vehicles it fits" section on this page.

    Specifications

    Fit and size

    • Position: Air conditioning, main drive
    • Quantity per vehicle: 1
    • Rib profile: Straight Rib
    • Cross section: K-Section
    • Rib depth: Standard

    Build and materials

    • Material: EPDM, aramid reinforced
    • Standards: SAE J1459, SAE J2432
    • Operating temperature: -42.7 C to 100 C (-45 F to 212 F)
    • Condition: New

    In the box

    One serpentine belt. The vehicles above need one belt apiece, and this listing holds one.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5184442AC, D1102-7235, F5DE-8620-AA, 10041197, 10101899, 10115869, 12648981, 12654814, 57-862086, 11720-1CA1A, 11720-1CA1B, 11720-AR000, 11720-AR00A, 23780-AA130, 80922-1210, 90916-010F5, 7B0.903.137B, 7B0-903-137B

    Frequently Asked Questions

    Is the Dayco 5060770 a serpentine belt for the 2014-2018 Subaru Forester H4 2.5L?

    Yes. Dayco 5060770 is listed for the 2014-2018 Subaru Forester H4 2.5L, and that vehicle takes one belt.

    Is this a serpentine belt for the 2011-2019 Dodge Journey V6 3.6L?

    Yes. Dayco 5060770 fits the 2011-2019 Dodge Journey V6 3.6L, with one belt per vehicle.

    What temperature range is this belt built for?

    The belt operates from -42.7 C to 100 C (-45 F to 212 F).

    What rib profile does the Dayco 5060770 belt have?

    It has a straight rib profile with a K-section cross section and standard rib depth. The material is EPDM, aramid reinforced.

    Does the Dayco 5060770 come with a tensioner or pulleys?

    No. This listing is one serpentine belt, and the vehicle takes one.
