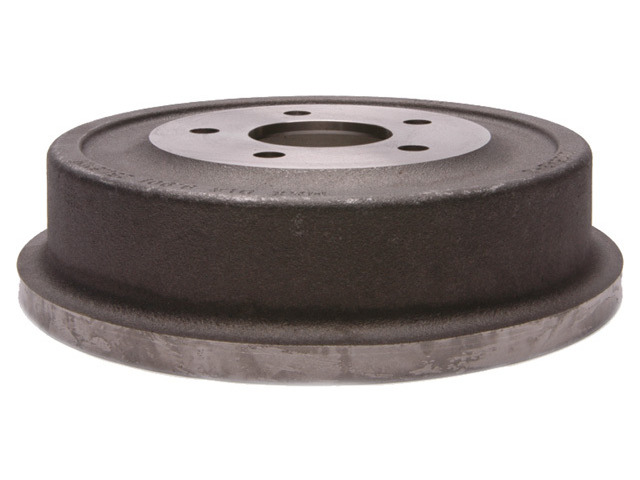

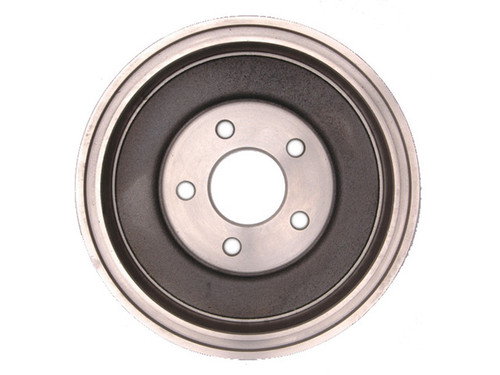

Raybestos Brakes Brake Drum P/N:9766R
Raybestos 9740R rear brake drum for the 2005-2006 Chevrolet Equinox and other vehicles gives the rear brake shoes a surface to press against and slow the wheel. This Raybestos brake drum belongs to the R-Line series.
A pulsing pedal, vibration under braking, grinding from the rear or deep scoring seen during a brake service can point to a worn drum. A sticking wheel cylinder or worn rear shoes can be behind these signs too, so find out which part is at fault before you buy a drum. Rear drums are normally replaced as a pair, and this listing is one drum.
This rear brake drum fits the 2005-2006 Chevrolet Equinox, the 2002-2007 Saturn Vue and the 2006 Pontiac Torrent, and each takes two. It is developed from OE samples for OE fit, form and function. Owners of other vehicles can look up their own car in the "Vehicles it fits" section.
Fit and size
Build and materials
Interchange: 122.66042 · 123.66042
YH140761 · 80105 · DL80105 · AX80105 · 140761 · 9740 · 9740DGS · BD80105 · 10304169 · 10306594 · TN9740GEO · X22044 · BD126101 · BD126101E · SB9740 · 666350
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this a Saturn Vue brake drum for the 2002-2007 model years?
Yes. Raybestos 9740R rear brake drum fits the 2002-2007 Saturn Vue, and the Vue takes two. Look up other vehicles in the "Vehicles it fits" section.
Is this a brake drum for the 2005-2006 Chevy Equinox?
Yes. The Raybestos 9740R is a rear brake drum for the 2005-2006 Chevrolet Equinox, and each Equinox takes two.
How deep is the Raybestos 9740R brake drum, and what are its lug hole specs?
The 9740R is 57.15 mm (2.25 in) deep. It has 5 stud/lug holes, each 14.55 mm (0.573 in) in diameter.
Are these Raybestos drums CNC machined and balanced?
Yes. R-Line drums are CNC machined, and their edges are mill balanced and 100 percent validated to help minimize thickness variation and vibration.
What rear brake signs can point to a worn 9740R drum?
A pulsing pedal, vibration when braking, grinding from the rear or scoring found during a brake service can mean the drum is worn. Have a shop inspect the rear brakes promptly.
