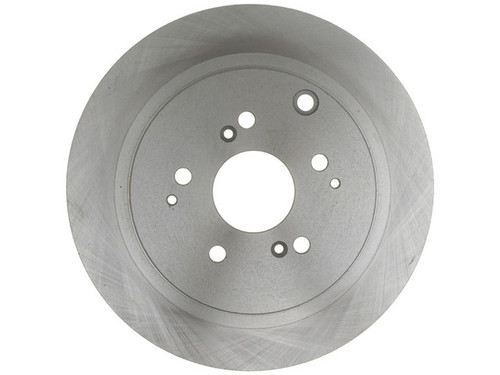

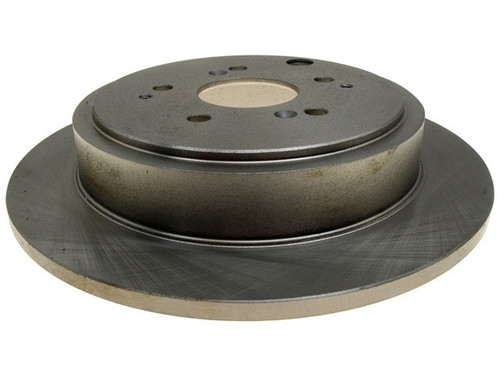

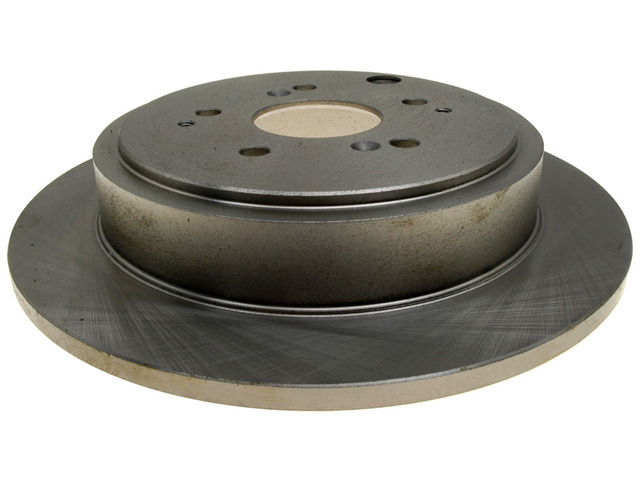

Raybestos Brakes Disc Brake Rotor P/N:980032R

Help keep braking smooth and dependable with the Raybestos R-Line 980032R, a rear Honda Pilot brake rotor that also fits the Acura MDX. It is a direct-fit replacement for the 2003-2008 Honda Pilot and the 2001-2006 Acura MDX, all engines, and is engineered for everyday driving conditions.

This vented rotor was developed from OE samples. It is made with G3000-qualified material for OE fit, form and function and dependable braking.

• SAE standard: R-Line rotors meet the SAE standard for tensile strength, which supports structural integrity.
• Low initial lateral runout and thickness variation: tight runout and thickness variation are designed to help reduce pedal pulsation and brake noise and to extend pad life.
• Mill balanced edges: R-Line rotors are mill balanced and 100 percent validated. This helps minimize thickness variation and vibration for smoother stopping.

Specifications:

• Material: cast iron. Vented, drum-in-hat type rotor with a non-directional braking surface
• Outside diameter: 12.33 in (313.2 mm). Overall height: 2.195 in (55.75 mm)
• Nominal thickness: 0.435 in (11.05 mm). Discard thickness: 0.374 in (9.5 mm)
• Center hole diameter: 2.53 in (64.25 mm)
• Mounting bolt holes: 5, each 0.495 in (12.55 mm), on a 4.5 in (114.3 mm) bolt circle
• ABS tone ring not included
• Country of origin: China

This rotor is sold individually, and the listed applications use two rear rotors. When you replace Honda Pilot rotors, replacing both sides together as a matched pair is recommended for even, balanced braking.
