Spark Plug for 2025 Husqvarna TX300 Heritage & More - NGK 6747

$10.99

Vehicles this part fits

    Part number: 6747
    UPC: 087295167472
    Condition: New
    Weight: 0.13 LBS
    Item Package Quantity: 1
    $10.99
    Adding to cart… The item has been added

    Have questions?

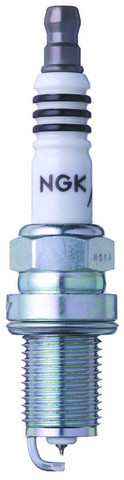

    NGK NGK Iridium IX Spark Plug P/N:6747
    NGK NGK Iridium IX Spark Plug P/N:6747
    $10.99
    $10.99

    The NGK 6747 spark plug for the 2025 Husqvarna TX300 Heritage 293cc and other vehicles ignites the air-fuel mixture in the cylinder. It is made for modified or high-performance engines, or as an upgrade to OE nickel alloy spark plugs.

    • Part of the NGK Iridium IX spark plug line, with extreme ignitability and exceptional anti-fouling.
    • Fine wire 0.6 millimeter iridium tip on the center electrode for high durability and a consistently stable spark.
    • Iridium alloy center electrode with 6x the density of platinum and an extremely high melting point, suited to modern high efficiency engines.

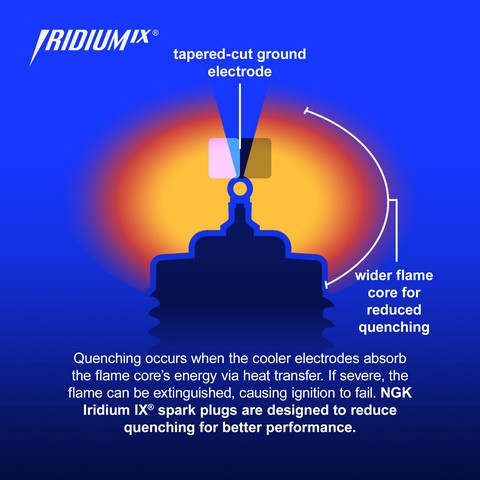

    • Tapered cut ground electrode with a reduced quenching design, for improved starting, idling, throttle response and acceleration.
    • Solid copper core, 98% pure, for heat dissipation, conductivity and ultra wide heat ranges.
    • Trivalent metal plating resists corrosion and seizing, so the plug is easier to install and remove.

    Hard starting, misfiring or sluggish acceleration can mean a spark plug is worn or fouled, though a failing ignition coil or a damaged plug cap can be behind them as well. Track down the cause before you change plugs.

    The 2023-2025 KTM 250 XC 249cc and 2023-2025 KTM 300 SX 293cc are among the many dirt bikes, snowmobiles, ATVs and personal watercraft this spark plug fits, and the number of plugs needed varies by engine. If your machine is not named here, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Thread size: M14 - 1.25 (metric)
    • Reach: 19.0 mm (0.750 in)
    • Seat type: Flat
    • Pre-gap: 0.8 mm (.032 in)
    • Heat range: 8
    • Insulator height: 54.0 mm (2.13 in)
    • Terminal: non-removable nut

    Build and materials

    • Center electrode: fine wire, iridium tip, copper core, non-projected
    • Ground electrode: one, J-gap, taper cut, nickel tip and core
    • Resistor: yes, 5000 ohms
    • Insulator: ceramic
    • Country of origin: Japan

    In the box: the spark plug with a crush washer.

    Interchange: BR8EIX SOLID · 5316 · IW24 · 3070156

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5316, IW24, 6747, BR8EIX SOLID, 3070156

    Frequently Asked Questions

    Is the NGK 6747 the right spark plug for a 2023-2025 KTM 250 XC 249cc?

    Yes. The NGK 6747 spark plug fits the 2023-2025 KTM 250 XC 249cc, which takes one plug.

    Do these NGK spark plugs come with a crush washer?

    Yes. This Iridium IX plug has a flat seat and includes a crush washer.

    What heat range and gap do these NGK iridium spark plugs have?

    This Iridium IX plug has an NGK heat range of 8 and comes pre-gapped at 0.8 mm (.032 in).

    Are these NGK R spark plugs resistor plugs?

    Yes. This Iridium IX plug is a resistor type rated at 5000 ohms.

    What thread size and reach does the NGK 6747 have?

    The NGK 6747 spark plug has an M14 - 1.25 metric thread and a 19.0 mm (0.750 in) reach, with a non-removable nut terminal.
