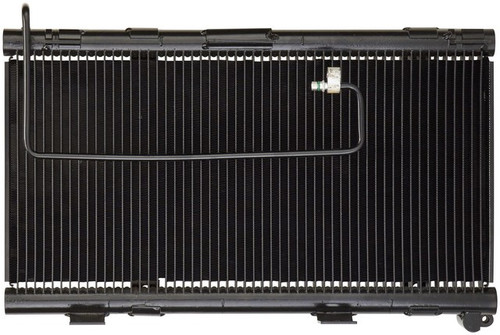

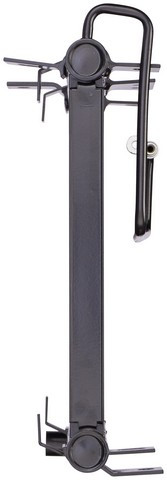

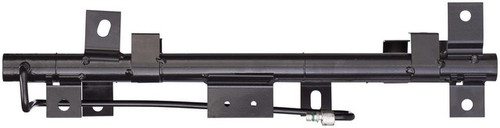

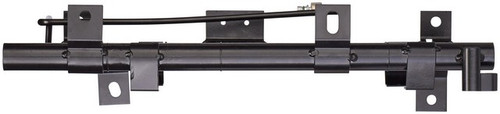

Spectra Premium 7-9135 A/C condenser for the 2004-2009 Chevrolet T6500 and other vehicles removes heat from the refrigerant so it can return to liquid in the A/C system. The Spectra Premium ac condenser is reverse engineered for proper fit on installation and supplied in the same construction style as the OEM unit.
- Specialty testing aimed at leak-free operation and reduced movement and vibration
- Parallel flow core made of aluminum
- Core measures 295 mm long, 548 mm wide and 26 mm thick
- Female block fitting on the inlet and male threaded fitting on the outlet
Quick facts
- Part: Spectra Premium 7-9135 A/C condenser
- Fits: the 2004-2009 Chevrolet T6500 and other vehicles
- Material: Aluminum core
- Condition: New
Warm air from the vents, an oily film on the condenser or fins bent by road debris can mean it is failing. Before you replace it, rule out a low refrigerant charge or a compressor problem, since either can give you warm air too. The 2004-2009 Chevrolet T6500 takes one condenser.
Fits
The vehicles it fits include the 2004-2009 Chevrolet T6500, the 2004-2009 Chevrolet T7500 and the 2004-2009 GMC T6500. If your truck is another make or model, find it in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core length: 295 mm
- Core width: 548 mm
- Core thickness: 26 mm
- Inlet fitting: female, block fitting
- Outlet fitting: male, threaded
Build and materials
- Core type: parallel flow
- Core material: aluminum
- Condition: new
- Country of origin: China
In the box
One A/C condenser. Mounting hardware and a drier are not included; plan on new mounting hardware, since old fasteners may not be reusable.
Interchange: 3400246 · 1563259 · 1140793 · PT40793 · 40793 · 3501793 · 97731040 · 97740142 · 1835342550 · 1835342551 · 1835342552 · 1835342553 · 1835342580 · 8975005210 · 8975005211 · HDH010722 · 1512024 · 6373 · 9240793 · HD60005 · 89097 · 322100 · 040708 · CN22111PF · CN22111PFC
This part cross-references / interchanges with the following part numbers:
3400246, 1563259, 1140793, PT40793, 40793, 3501793, 97731040, 97740142, 1835342550, 1835342551, 1835342552, 1835342553, 1835342580, 8975005210, 8975005211, HDH010722, 1512024, 6373, 9240793, HD60005, 89097, 322100, 040708, CN22111PF, CN22111PFC
Frequently Asked Questions
Is the Spectra Premium 7-9135 condenser right for a 2004-2009 Chevrolet T6500?
Yes. Spectra Premium 7-9135 fits the 2004-2009 Chevrolet T6500 and the 2004-2009 Chevrolet T7500. For other trucks, look in the "Vehicles it fits" section.
Does this A/C condenser come with mounting hardware or a drier?
No. The Spectra Premium 7-9135 listing is one condenser. Mounting hardware and a drier are not included.
What size is the core on this condenser?
The aluminum parallel flow core is 295 mm long, 548 mm wide and 26 mm thick.
Which fittings does this condenser have?
The inlet is a female block fitting and the outlet is a male threaded fitting.
Does Spectra Premium 7-9135 interchange with 3400246?
Yes. 3400246 is one of the other numbers this Spectra Premium 7-9135 condenser replaces.
