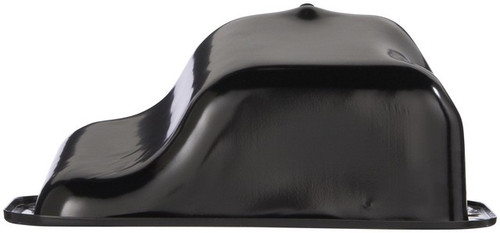

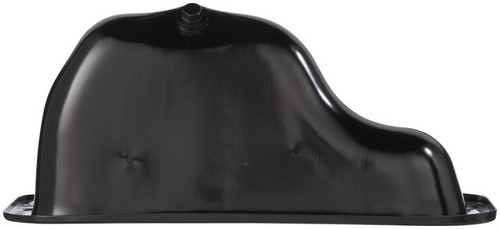

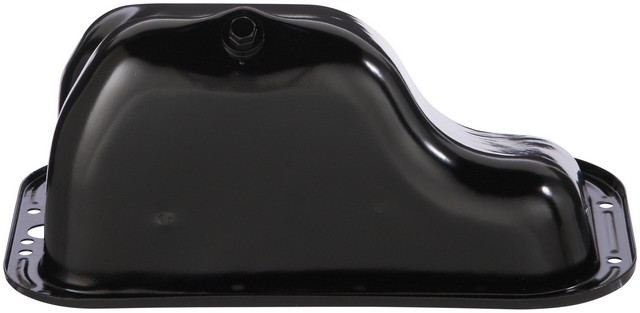

Spectra Premium Engine Oil Pan P/N:NSP49A
Spectra Premium GMP47A oil pan for the 1998-2000 Chevrolet Metro 3-cylinder 1.0L and other vehicles holds the engine oil at the bottom of the engine. It is made to meet or exceed the performance of the original equipment it replaces.
Oil spots where the car is parked, or a dented, cracked or rusted engine oil pan, can mean the pan needs replacing. Before you replace it, rule out a loose drain plug, a leaking oil filter seal or a valve cover gasket leak, so you fix the real source. Each of these cars takes one pan, at the bottom of the engine.
It is a direct-fit replacement for the 1998-2000 Chevrolet Metro 3-cylinder 1.0L, the 1996-1999 Pontiac Firefly 3-cylinder 1.0L and the 1996-1997 Geo Metro 3-cylinder 1.0L.
Fit and size
Build and materials
One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does this oil pan fit the 1996-1997 Geo Metro 3-cylinder 1.0L?
Yes. Spectra Premium GMP47A fits the 1996-1997 Geo Metro 3-cylinder 1.0L, and each car takes one pan.
Does the Spectra Premium oil pan come with a drain plug and oil pickup?
Yes, this oil pan includes a drain plug with an M14 - 1.5 thread, but not the oil pickup, windage tray or crankshaft wiper.
What material and finish does the GMP47A oil pan have?
Spectra Premium GMP47A is made of Cold Rolled Steel (EDDQ) with a powder-coated finish. It is a baffled wet-sump pan.
How can I tell if my oil pan is cracked or rusted through?
Oil spots where the car is parked, or a dented, cracked or rusted pan, can be signs of damage. A shop can inspect the pan safely on a lift.

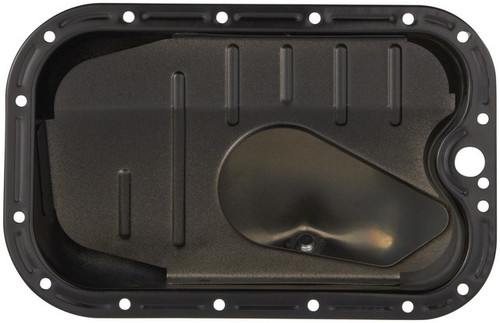

How many mounting holes does this oil pan have, and how big is it?
This pan has 16 mounting holes. It measures 216 mm at its maximum width and 147 mm at its maximum depth.
