Oil Pan for 2014-2018 Chevrolet Silverado 2500 & More - Spectra Premium GMP98A

$244.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: GMP98A
    UPC: 671607016611
    Condition: New
    Weight: 20.15 LBS
    Item Package Quantity: 1
    $244.99
    Adding to cart… The item has been added

    Have questions?

    Spectra Premium Engine Oil Pan P/N:GMP98A
    Spectra Premium Engine Oil Pan P/N:GMP98A
    $244.99
    $244.99

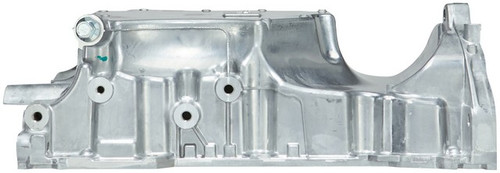

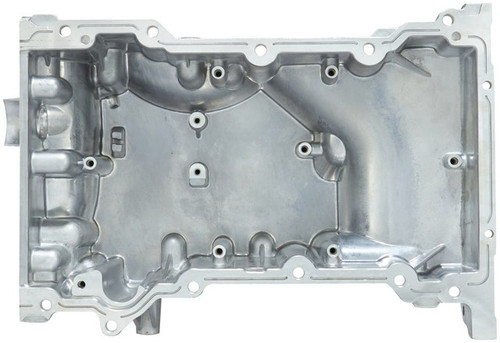

    Spectra Premium GMP98A oil pan for the 2014-2018 Chevrolet Silverado 2500 V8 5.3L and other vehicles collects and holds the engine's oil until the pump draws it up. This aluminum pan is engineered to meet or exceed the performance of the original equipment pan it replaces.

    • Aluminum construction with an uncoated finish
    • Baffled wet-sump design with the sump at the front
    • Pickup and drain plug included, with an M12 - 1.75 drain thread

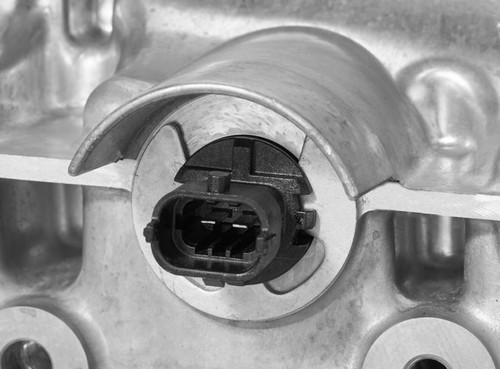

    • Oil level sensor port; no dipstick port
    • 13 mounting holes

    Quick facts

    • Part: Spectra Premium GMP98A oil pan
    • Also called: engine oil pan
    • Fits: 2014-2018 Chevrolet Silverado 2500 V8 5.3L and other vehicles
    • Material: Aluminum
    • Condition: New

    Oil dripping under the engine, a dented or cracked pan, or damaged drain threads can mean the engine oil pan is worn, though a loose drain plug or a failed pan gasket can leak just the same.

    Fits

    It is listed for a wide range of Chevrolet, Buick, Cadillac and GMC models, including the 2013-2017 Chevrolet Equinox V6 3.6L and the 2012-2020 Chevrolet Impala V6 3.6L, and each engine takes a single pan. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Sump location: Front
    • Maximum width: 300 mm
    • Maximum depth: 130 mm
    • Mounting holes: 13
    • Drain thread size: M12 - 1.75

    Build and materials

    • Material: Aluminum
    • Finish: Uncoated
    • Sump type: Wet, baffled
    • Oil level sensor port: Yes
    • Dipstick port: No
    • Condition: New
    • Country of origin: Mexico

    In the box

    One oil pan with a pickup and a drain plug. A crankshaft wiper and a windage tray are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3310686, 264171, 12619977, 12648946, 12659685, 12659831, 12666371, 12666995, 12668476, 12684605, 31101018, SPIGMP98A, 99656741, NOE99656741, OP37620

    Frequently Asked Questions

    Is this the right Chevy Equinox oil pan for a 2013-2017 Equinox with the V6-3.6L?

    Yes. Spectra Premium GMP98A is listed for the 2013-2017 Chevrolet Equinox V6 3.6L and takes one pan per engine. Check the "Vehicles it fits" section for your exact engine.

    Is this an Impala oil pan for the 2012-2020 Chevrolet Impala V6 3.6L?

    Yes. Spectra Premium GMP98A is listed for the 2012-2020 Chevrolet Impala V6 3.6L, and this listing is one pan.

    Does the Spectra Premium GMP98A come with the pickup and drain plug?

    Yes, the pan includes a pickup and a drain plug. A crankshaft wiper and a windage tray are not included.

    What drain plug thread does this baffled aluminum oil pan use?

    The drain thread size is M12 - 1.75. The pan has an oil level sensor port but no dipstick port.

    What damage should I look for on an oil pan that may be leaking?

    Oil-wet streaks, dents, cracks or damaged drain plug threads can show a pan is failing. Look only with the engine off and cool, and have a shop inspect it if you see any.
