Lower Oil Pan for 2011-2013 Hyundai Tucson & More - Spectra Premium HYP05C

$102.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: HYP05C
    UPC: 671607015232
    Condition: New
    Weight: 9.27 LBS
    Item Package Quantity: 1
    $102.99
    Adding to cart… The item has been added

    Have questions?

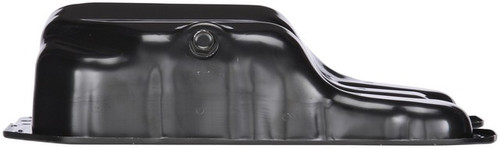

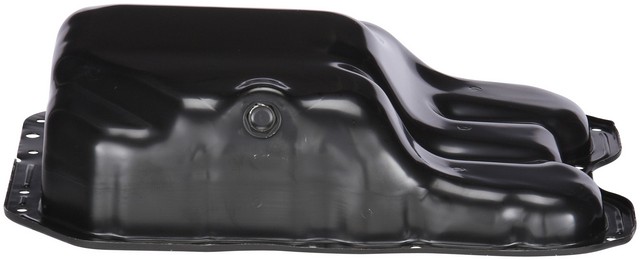

    Spectra Premium Engine Oil Pan P/N:HYP05C
    Spectra Premium Engine Oil Pan P/N:HYP05C
    $102.99
    $102.99

    Spectra Premium HYP05C lower oil pan for the 2011-2013 Hyundai Tucson 4-cylinder 2.0L and other vehicles holds the engine's oil supply in the wet sump below the engine. Engineering, manufacturing technology and quality control ensure this Spectra Premium oil pan meets or exceeds the performance of the original equipment it replaces.

    • Cold Rolled Steel (EDDQ) pan body
    • Powder coated finish
    • Drain plug included, with an M14 - 1.5 drain thread
    • Wet sump type with the sump at the front
    • 22 mounting holes

    Quick facts

    • Part: Spectra Premium HYP05C oil pan
    • Also called: engine oil pan
    • Fits: 2011-2013 Hyundai Tucson 4-cylinder 2.0L and other vehicles
    • Position: Lower
    • Material: Cold Rolled Steel (EDDQ)
    • Condition: New

    Oil spots under the engine, a falling oil level or a dented or rusted pan can mean the pan is leaking. A leak there can also come from the gasket or the drain plug seal, so with the engine off and cool, look over the pan, its edges and the drain plug area for wet spots and damage before you replace it.

    Fits

    The 2011-2013 Hyundai Tucson 4-cylinder 2.0L, the 2010-2013 Kia Forte 4-cylinder 2.0L and the 2010-2013 Kia Forte Koup 4-cylinder 2.0L all take this oil pan, one per vehicle, and it fits more vehicles besides. If your car is not named here, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Lower
    • Quantity per vehicle: 1
    • Maximum width: 292 mm
    • Maximum depth: 99 mm
    • Mounting holes: 22
    • Drain thread size: M14 - 1.5
    • Sump location: Front

    Build and materials

    • Sump type: Wet
    • Material: Cold Rolled Steel (EDDQ)
    • Finish: Powder coated
    • Drain plug: included
    • Condition: New
    • Country of origin: China

    In the box

    One oil pan with its drain plug. An oil pickup, windage tray and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3312472052215922, 3310468, 103417, KHYP5C, HY1416333, 264424, 31150374, 2151025000, 2151025001, SPIHYP05C, 2002788, NOE2002788, OP37509

    Frequently Asked Questions

    Is HYP05C the right Kia Forte oil pan for a 2010-2013 Kia Forte 4-cylinder 2.0L?

    Yes. Spectra Premium HYP05C is a lower oil pan for the 2010-2013 Kia Forte 4-cylinder 2.0L, and the 2010-2013 Kia Forte Koup 4-cylinder 2.0L takes it too.

    Is this the right oil pan for a 2011-2013 Hyundai Tucson 4-cylinder 2.0L?

    Yes. Spectra Premium HYP05C fits the 2011-2013 Hyundai Tucson 4-cylinder 2.0L, and that vehicle takes one pan.

    Does the HYP05C oil pan come with a drain plug?

    Yes. The drain plug is included and has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.

    Is this engine oil pan a wet sump design?

    Yes. This pan is a wet sump type with the sump at the front. It is Cold Rolled Steel (EDDQ) with a powder coated finish.

    How can I tell if a steel oil pan like this one is damaged?

    With the engine off and cool, look for wet oil around the pan edges, dents or cracks in the steel, and damaged threads in the M14 - 1.5 drain hole.
