Oil Pan for 2010-2014 Hyundai Genesis Coupe - Spectra Premium HYP22A

$111.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: HYP22A
    UPC: 671607015768
    Condition: New
    Weight: 5.94 LBS
    Item Package Quantity: 1
    $111.99
    Adding to cart… The item has been added

    Have questions?

    Spectra Premium Engine Oil Pan P/N:HYP22A
    Spectra Premium Engine Oil Pan P/N:HYP22A
    $111.99
    $111.99

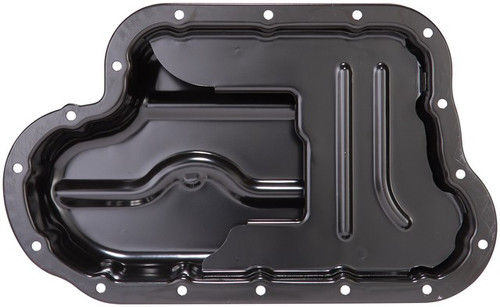

    Spectra Premium HYP22A oil pan for the 2010-2014 Hyundai Genesis Coupe 4-cylinder 2.0L holds the engine's oil in a wet sump. This Spectra Premium oil pan is built to meet or exceed the performance of the original equipment it replaces.

    • Cold rolled steel (EDDQ) construction with a powder-coated finish
    • Baffled wet sump with the sump at the front
    • Drain plug with an M14 - 1.5 thread
    • 16 mounting holes
    • 235 mm maximum width and 73 mm maximum depth

    Quick facts

    • Part: Spectra Premium HYP22A oil pan
    • Also called: engine oil pan
    • Fits: 2010-2014 Hyundai Genesis Coupe 4-cylinder 2.0L
    • Material: Cold Rolled Steel (EDDQ)
    • Condition: New

    Oil spots where the car is parked, a dent or crack in the pan, rust-through or a stripped drain-plug thread can mean the pan needs replacing. Before you replace the oil pan, rule out a loose drain plug or a seep from higher up the engine, since oil runs down and collects on the pan. The engine carries one pan at its bottom, and this listing is that one pan.

    Fits

    It is a direct-fit replacement oil pan for the 2010-2014 Hyundai Genesis Coupe 4-cylinder 2.0L.

    Specifications

    Fit and size

    • Sump location: front
    • Sump type: wet
    • Quantity per vehicle: 1
    • Maximum width: 235 mm
    • Maximum depth: 73 mm
    • Mounting holes: 16
    • Drain thread size: M14 - 1.5

    Build and materials

    • Material: cold rolled steel (EDDQ)
    • Finish: powder coated
    • Baffled: yes
    • Condition: new
    • Country of origin: Republic of Korea

    In the box

    One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3312469904732324, 3310647, 103414, 264427, 50383, 215102C000, SPIHYP22A, 2002789, NOE2002789, OP37497

    Frequently Asked Questions

    Does the 2010-2014 Hyundai Genesis Coupe 4-cylinder 2.0L take Spectra Premium HYP22A?

    Yes. Spectra Premium HYP22A is a direct-fit oil pan for the 2010-2014 Hyundai Genesis Coupe 4-cylinder 2.0L, and each car takes one pan.

    Does this Spectra Premium oil pan come with a drain plug?

    Yes, the drain plug is included and has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.

    Is the Spectra Premium engine oil pan baffled?

    Yes. The Spectra Premium HYP22A is baffled and has a wet sump at the front. A windage tray is not included.

    What is this oil pan made of and how is it finished?

    It is made of cold rolled steel (EDDQ) with a powder-coated finish.

    How big is this oil pan, and how many mounting holes does it have?

    Maximum width is 235 mm and maximum depth is 73 mm. The pan has 16 mounting holes.
