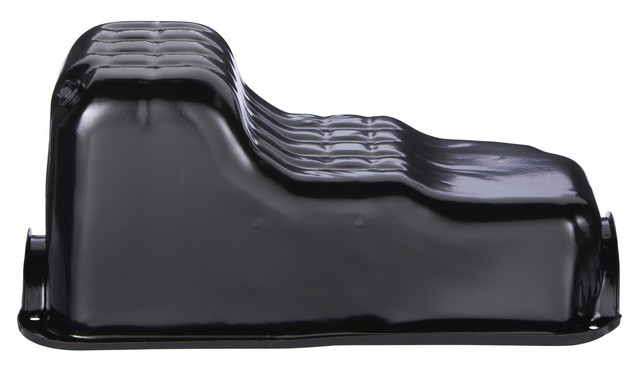

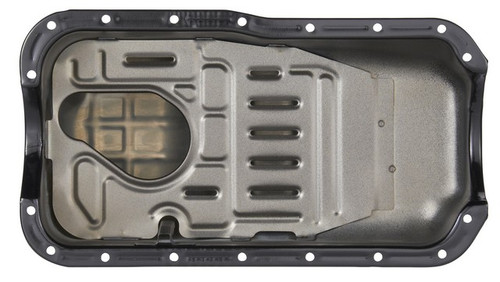

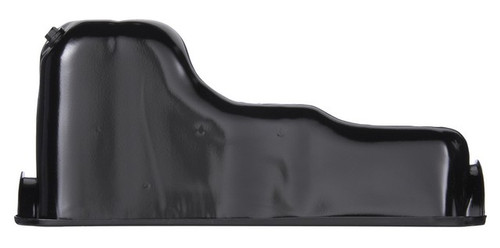

Spectra Premium NSP11A oil pan for the 1994-1998 Nissan Quest V6 3.0L, the 1999-2002 Quest V6 3.3L and other vehicles holds the engine's oil supply at the bottom of the engine. This Spectra Premium engine oil pan is made of cold rolled steel (EDDQ) with a powder-coated finish.
- Spectra Premium product line
- Cold rolled steel (EDDQ) body with a powder-coated finish
- Baffled wet sump with the sump at the rear
- M14 - 1.5 drain thread
Quick facts
- Part: Spectra Premium NSP11A oil pan
- Also called: engine oil pan
- Fits: 1994-1998 Nissan Quest V6 3.0L, the 1999-2002 Quest V6 3.3L and other vehicles
- Material: Cold rolled steel (EDDQ)
- Condition: New
Oil drips under the parked vehicle, a dented or cracked pan, or a damaged drain thread can mean the pan needs replacing. A leaking pan gasket, a loose drain plug or a worn rear main seal can leave oil in the same area, so find the source of the leak before buying a pan. The engine takes a single pan, and this listing is that one pan.
Fits
This pan also fits the 1994-1998 Mercury Villager V6 3.0L and the 1999-2002 Villager V6 3.3L. Spectra Premium oil pans are made with engineering, manufacturing technology and quality control intended to meet or exceed the performance of the original equipment they replace.
Specifications
Fit and size
- Sump location: Rear
- Maximum width: 251 mm
- Maximum depth: 198 mm
- Mounting holes: 18
- Quantity per vehicle: 1
Build and materials
- Type: Wet sump, baffled
- Material: Cold rolled steel (EDDQ)
- Finish: Powder coated
- Condition: New
- Country of origin: Canada
In the box
One oil pan with its drain plug. The pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312472052215997, 3310087, 103305, KNSP11A, 111101B000, 264504, 264512, F6XZ6675AA, 58397B, SPINSP11A, 501146, OP37595
Frequently Asked Questions
Is the NSP11A an oil pan for the 1994-1998 Nissan Quest V6 3.0L and the 1999-2002 Quest V6 3.3L?
Yes. Spectra Premium NSP11A fits both the 1994-1998 Nissan Quest V6 3.0L and the 1999-2002 Quest V6 3.3L.
Will the NSP11A fit a 1999-2002 Mercury Villager V6 3.3L?
Yes. Spectra Premium NSP11A fits the 1999-2002 Mercury Villager V6 3.3L and the 1994-1998 Villager V6 3.0L.
Is this Spectra Premium oil pan baffled?
Yes. This pan is a baffled wet sump with the sump at the rear. A windage tray is not included.
Does this pan come with a drain plug and an oil pickup?
Yes, the drain plug is included, with an M14 - 1.5 thread. No, the oil pickup is not included, and neither are the windage tray or the crankshaft wiper.
What is this oil pan made of and how is it finished?
This oil pan is cold rolled steel (EDDQ) with a powder-coated finish. It measures 251 mm at its maximum width and 198 mm at its maximum depth.
