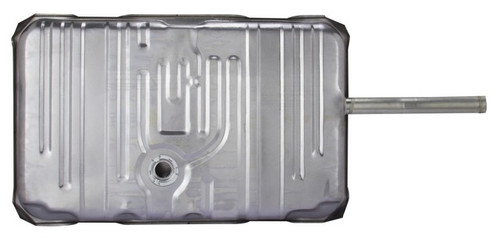

Spectra Premium GM34J fuel tank for the 1968 Chevrolet El Camino V8 5.4L, the 1968-1969 El Camino 6-cylinder 3.8L or V8 5.3L, the 1968-1970 El Camino 6-cylinder 4.1L, V8 5.0L, 5.7L or 6.5L and the 1970 El Camino V8 6.6L or 7.4L holds the vehicle's fuel supply. This Spectra Premium fuel tank comes from engineering, manufacturing technology and quality control meant to meet or exceed the performance of the original equipment tank it replaces.
- Holds 17 U.S. gallons of fuel
- Filler neck attached, 16.125 inches long
- Painted tank coating
- Material thickness of 0.029 inch
Quick facts
- Part: Spectra Premium GM34J fuel tank
- Fits: 1968 Chevrolet El Camino V8 5.4L, the 1968-1969 El Camino 6-cylinder 3.8L or V8 5.3L, the 1968-1970 El Camino 6-cylinder 4.1L, V8 5.0L, 5.7L or 6.5L and the 1970 El Camino V8 6.6L or 7.4L
- Condition: New
Fuel odor, wet spots or heavy rust on the tank can mean it is damaged. A bad fuel pump, a faulty sending unit or a leaking fuel line can be behind similar signs, so find the cause before you buy a tank.
Fits
It fits the 1968 Chevrolet El Camino V8 5.4L, the 1968-1969 El Camino 6-cylinder 3.8L or V8 5.3L, the 1968-1970 El Camino 6-cylinder 4.1L, V8 5.0L, 5.7L or 6.5L and the 1970 El Camino V8 6.6L or 7.4L, and each takes one tank. This listing is one tank.
Specifications
Fit and size
- Quantity per vehicle: 1
- Capacity: 17 U.S. gallons
- Filler neck length: 16.125 in
- Material thickness: 0.029 in
Build and materials
- Coating: painted
- Filler neck: attached
- Sump: no baffled sump, no attached sump
- Condition: new
- Country of origin: Canada
In the box
One fuel tank with its attached filler neck, a lock ring and an O-ring. The fuel pump, sending unit and mounting straps are not included, so plan on new mounting straps, as the old ones may not be reusable.
Interchange: 576070 · 3930806 · 603 · TNKGM34J · IGM34J · IGM34JSS · RGM34J
This part cross-references / interchanges with the following part numbers:
576070, 3930806, 603, TNKGM34J, IGM34J, IGM34JSS, RGM34J
Frequently Asked Questions
Will this fuel tank fit the 1970 Chevrolet El Camino V8 7.4L?
Yes. Spectra Premium GM34J fits the 1970 Chevrolet El Camino V8 7.4L, and each vehicle takes one tank.
Does the Spectra Premium GM34J fuel tank come with a fuel pump?
No. The fuel pump, sending unit and mounting straps are not included. The GM34J comes with its attached filler neck, a lock ring and an O-ring.
How much fuel does the GM34J tank hold?
This tank holds 17 U.S. gallons. Its filler neck is attached and 16.125 inches long.
What can show that a 17-gallon fuel tank is damaged or leaking?
A fuel smell, drips or heavy rust on the tank can mean damage. Fuel leaks are a safety risk, so have a shop inspect it promptly.
Does the Spectra Premium GM34J replace tank number 576070?
Yes. 576070 is listed as an interchange number for the Spectra Premium GM34J, along with 3930806 and 603.
