Radiator for 1990-1995 Mazda 323 & More - Spectra Premium CU1135

$236.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU1135
    UPC: 671607701708
    Condition: New
    Weight: 23.41 LBS
    Item Package Quantity: 1
    $236.99
    Adding to cart… The item has been added

    Have questions?

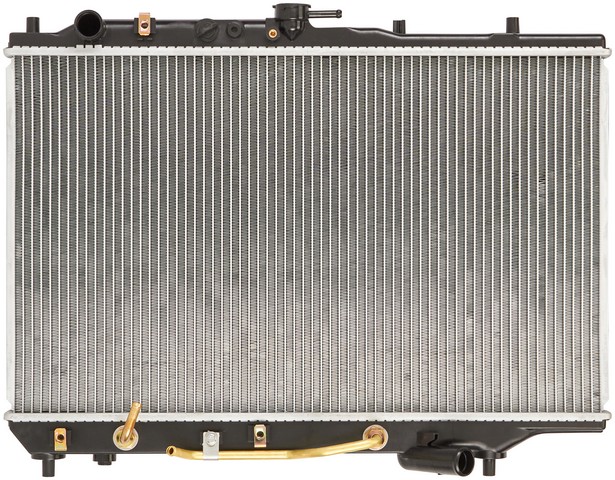

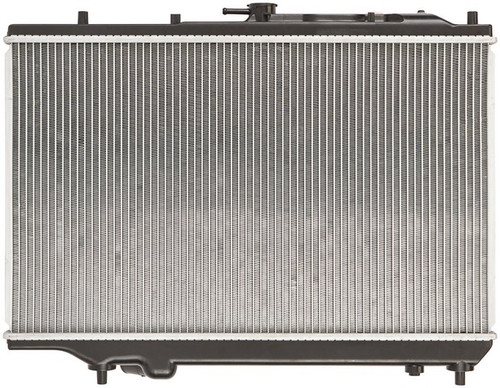

    Spectra Premium Radiator P/N:CU1135
    Spectra Premium Radiator P/N:CU1135
    $236.99
    $236.99

    Spectra Premium CU1135 radiator for the 1990-1991 Mazda 323 4-cylinder 1.8L, the 1990-1995 323 4-cylinder 1.6L, the 1993-1994 323 4-cylinder 1.8L and other vehicles moves heat out of the engine coolant so the engine stays at operating temperature. Its structure and design are built to carry the same durability expectations as the OE radiator.

    • Spectra Premium line radiator with an aluminum core and plastic tanks
    • Internal concentric transmission oil cooler with 10mm hose barb fittings
    • Single-row, down-flow core with the inlet at top left and the outlet at bottom right
    • Complete radiator with post-type mounting

    Quick facts

    • Part: Spectra Premium CU1135 radiator
    • Fits: the 1990-1991 Mazda 323 4-cylinder 1.8L, the 1990-1995 323 4-cylinder 1.6L, the 1993-1994 323 4-cylinder 1.8L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant stains on the tanks or core, or an engine that runs hot, can mean the radiator is worn, though a thermostat or water pump can be behind the same signs. If the radiator is the cause, this one replaces it.

    Fits

    The 323 years and engines named above are covered, and it also fits the 1990-1994 Mazda Protege 4-cylinder 1.8L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core width: 25.5 in
    • Core height: 15.4375 in
    • Core thickness: 1 in, 1 row
    • Inlet and outlet diameter: 1.25 in each
    • Header length: 26.375 in, header width: 2.0625 in
    • Transmission cooler distance between fittings: 10.8125 in

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Flow type: Down flow
    • Mounting type: Post
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its transmission oil cooler built in. A frame and an engine oil cooler are not included. This listing is a single radiator, and the cars above need only one.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this Mazda 323 radiator right for the 1990-1995 model with the 4-cylinder 1.6L?

    Yes. Spectra Premium CU1135 fits the 1990-1995 Mazda 323 4-cylinder 1.6L, and it also fits the 4-cylinder 1.8L in the 1990-1991 and 1993-1994 Mazda 323.

    Does this Protege radiator fit the 1990-1994 Mazda Protege 4-cylinder 1.8L?

    Yes. Spectra Premium CU1135 is listed for the 1990-1994 Mazda Protege with the 4-cylinder 1.8L engine.

    Does the CU1135 radiator have a transmission oil cooler built in?

    Yes. It has an internal concentric transmission oil cooler with 10mm hose barb fittings. An engine oil cooler is not included.

    Does the Spectra Premium CU1135 come with a mounting frame?

    No. A frame is not included with this radiator; it is a complete radiator with post-type mounting and a built-in transmission oil cooler.

    What are the inlet and outlet diameters on the Spectra Premium CU1135 radiator?

    Both the inlet and the outlet measure 1.25 inches in diameter. The inlet sits at the top left and the outlet at the bottom right of this down-flow radiator.
