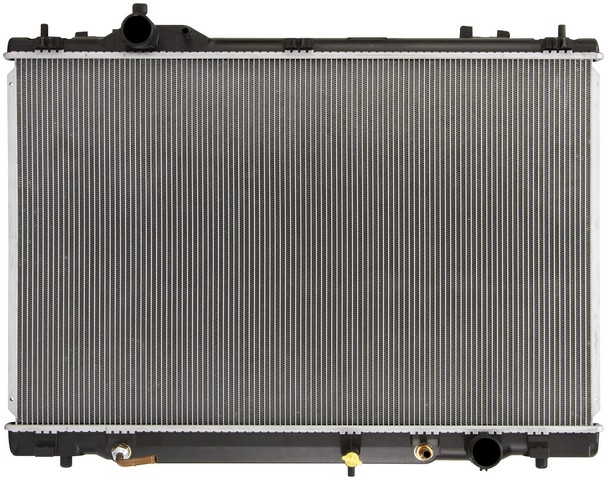

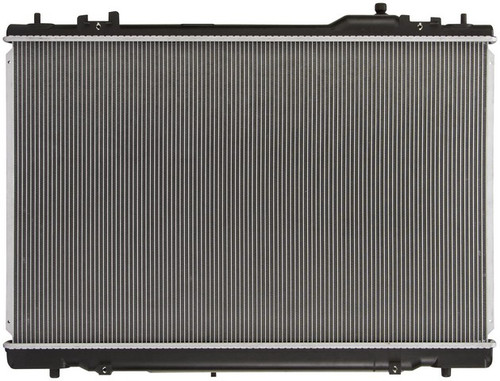

    Spectra Premium Radiator P/N:CU13037
    Spectra Premium Radiator P/N:CU13037
    $214.99
    $214.99

    Spectra Premium CU13037 radiator for the 2007-2017 Lexus LS460 V8 4.6L carries engine coolant through an aluminum core to shed heat. Its structure and design are built to take on the same durability and expectations as the OE.

    • Aluminum core, one row, 17.6875 in high by 27.9375 in wide and 0.625 in thick
    • Plastic tanks with a 1.5 in inlet at the top left and a 1.5 in outlet at the bottom right
    • Down flow design for coolant travel from the top tank to the bottom tank
    • Internal concentric transmission oil cooler with 10mm hose barb fittings
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU13037 radiator
    • Fits: 2007-2017 Lexus LS460 V8 4.6L
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant leaking at the tanks or core, an engine that runs hot or a falling coolant level can mean the radiator has failed. A stuck thermostat, a weak water pump, a cooling fan, a hose or the radiator cap can be behind these signs too, so find the cause before buying a radiator.

    Fits

    This radiator is a direct-fit replacement for the 2007-2017 Lexus LS460 V8 4.6L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 17.6875 in
    • Core width: 27.9375 in
    • Core thickness: 0.625 in
    • Core rows: 1
    • Inlet diameter: 1.5 in
    • Outlet diameter: 1.5 in
    • Inlet location: top left
    • Outlet location: bottom right
    • Flow type: down flow
    • Mounting type: post
    • Transmission oil cooler distance between fittings: 14.75 in

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: internal, concentric, hose barb 10mm fittings
    • Condition: new
    • Country of origin: Indonesia

    In the box

    One radiator with its internal transmission oil cooler. This listing is one radiator, and the 2007-2017 Lexus LS460 V8 4.6L takes one. A frame and an engine oil cooler are not included.

    Interchange: 103393 · 24642793620462857 · 8013037 · RK1220 · 13037 · C13037 · 0ATY5995 · 0ATY6232 · 2213174 · 2219556 · B13037 · 13037C · RAD13037 · A13037 · 1640038170 · 1640038171 · 1640038172 · 2481223 · 4113037 · RA13037C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103393, 24642793620462857, 8013037, RK1220, 13037, C13037, 0ATY5995, 0ATY6232, 2213174, 2219556, B13037, 13037C, RAD13037, A13037, 1640038170, 1640038171, 1640038172, 2481223, 4113037, RA13037C

    Frequently Asked Questions

    Is this the right radiator for the 2007-2017 Lexus LS460 V8 4.6L?

    Yes. Spectra Premium CU13037 is a direct-fit radiator for the 2007-2017 Lexus LS460 V8 4.6L, and that car takes one.

    Does this radiator have a transmission oil cooler built in?

    Yes. Spectra Premium CU13037 has an internal concentric transmission oil cooler with 10mm hose barb fittings 14.75 in apart. It does not include an engine oil cooler.

    What size are the inlet and outlet on this radiator?

    Both the inlet and the outlet are 1.5 in across. The inlet sits at the top left and the outlet at the bottom right.

    Is this radiator all aluminum?

    No. The core is aluminum and the tanks are plastic.

    Does this radiator come with a frame, and how does it mount?

    No, a frame is not included. This radiator uses a post mounting type.
