Front Radiator for 2009-2016 Toyota Corolla & More - Spectra Premium CU13106

$128.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13106
    UPC: 671607777017
    Condition: New
    Weight: 37.07 LBS
    Item Package Quantity: 1
    $128.99
    Adding to cart… The item has been added

    Have questions?

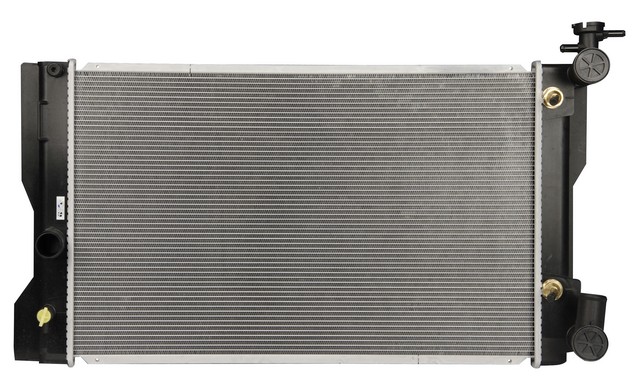

    Spectra Premium Radiator P/N:CU13106
    Spectra Premium Radiator P/N:CU13106
    $128.99
    $128.99

    Spectra Premium CU13106 front radiator for the 2009-2016 Toyota Corolla 4-cylinder 1.8L and other vehicles cools engine coolant as it flows through its aluminum core. Its structure and design are built to the same durability and expectations as the OE radiator.

    • Single-row aluminum core with plastic tanks
    • Cross flow design with a center-left inlet and a bottom-right outlet
    • Built-in transmission oil cooler with 8 mm hose barb fittings
    • Saddle mounting type

    Quick facts

    • Part: Spectra Premium CU13106 radiator
    • Fits: 2009-2016 Toyota Corolla 4-cylinder 1.8L and other vehicles
    • Position: Front
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A coolant leak at the tanks or core, a coolant level that keeps dropping, or an engine running hotter than normal can mean the radiator is failing. Overheating can have other causes too, so while the engine is off and cool, look over the radiator and hoses for wet spots or crusty dried coolant before you replace it.

    Fits

    It is a direct-fit radiator for the 2009-2016 and 2019 Toyota Corolla 4-cylinder 1.8L, the 2009-2014 Toyota Matrix 4-cylinder 1.8L and the 2009-2010 Pontiac Vibe 4-cylinder 1.8L. Each of them takes one, and this listing is a single unit.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 1
    • Core: 23.625 in high, 14.9375 in wide, 0.8125 in thick
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.3125 in
    • Inlet header: 15.75 in long, 1.6875 in wide
    • Outlet header: 15.75 in long, 1.4375 in wide
    • Transmission cooler fitting spacing: 9.8125 in

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Core rows: 1
    • Transmission oil cooler: internal, concentric
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will Spectra Premium CU13106 fit the 2019 Toyota Corolla 4-cylinder 1.8L?

    Yes. Spectra Premium CU13106 fits the 2019 Toyota Corolla 4-cylinder 1.8L, and the 2009-2016 Corolla with the same engine. This listing is one front radiator.

    Does the Spectra Premium radiator have a built-in transmission oil cooler?

    Yes. Spectra Premium CU13106 has an internal concentric transmission oil cooler with 8 mm hose barb fittings spaced 9.8125 in apart. It has no engine oil cooler.

    Is a frame or engine oil cooler included with the CU13106 radiator?

    No. A frame and an engine oil cooler are not included. The radiator itself comes with the built-in transmission oil cooler.

    What are the core and tank materials on this front radiator?

    The core is aluminum and the tanks are plastic. The core is single-row, 23.625 in high and 14.9375 in wide.

    What can coolant stains on this radiator's tanks mean?

    Dried coolant or damp spots at the plastic tanks or core can point to a leak. With the engine off and cool, look them over; a shop can pressure-test the cooling system.
