Radiator for 2009-2013 Toyota Corolla - Spectra Premium CU13152

$133.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13152
    UPC: 671607785371
    Condition: New
    Weight: 48.19 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

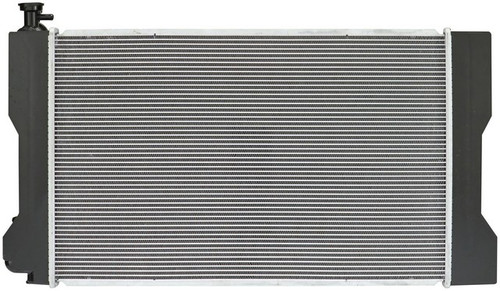

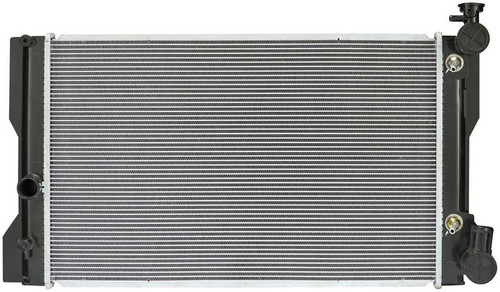

    Spectra Premium Radiator P/N:CU13152
    Spectra Premium Radiator P/N:CU13152
    $133.99
    $133.99

    Spectra Premium CU13152 radiator for the 2009-2013 Toyota Corolla 4-cylinder 1.8L passes engine coolant through its aluminum core to shed engine heat. This Spectra Premium radiator is built to the same durability expectations as the OE radiator.

    • Aluminum core with one row, 23.625 in high and 14.8125 in wide
    • Plastic tanks
    • Cross-flow layout with the inlet at bottom left and the outlet at bottom right
    • Internal concentric transmission oil cooler with 8mm hose barb fittings
    • Saddle mounting type

    Quick facts

    • Part: Spectra Premium CU13152 radiator
    • Fits: 2009-2013 Toyota Corolla 4-cylinder 1.8L
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Visible coolant leaks, overheating or a temperature gauge that climbs can mean a radiator is failing. Before you replace the radiator, rule out the radiator cap, hoses, thermostat and water pump, since each of them also affects how the engine holds its temperature.

    Fits

    It is a direct-fit replacement for the 2009-2013 Toyota Corolla 4-cylinder 1.8L, which takes one radiator. This listing is a single radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 23.625 in
    • Core width: 14.8125 in
    • Core thickness: 0.625 in
    • Inlet diameter: 1.375 in
    • Outlet diameter: 1.3125 in
    • Inlet and outlet header: 15.8125 in long, 1.9375 in wide
    • Distance between transmission cooler fittings: 9.8125 in
    • Mounting type: Saddle

    Build and materials

    • Core material: Aluminum, 1 row
    • Tank material: Plastic
    • Flow type: Cross flow
    • Transmission oil cooler: internal, concentric, 8mm hose barb fittings
    • Condition: New
    • Country of origin: Indonesia

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 17788000045933596 · 8013152 · RK1571 · 13152 · 3557 · C13152 · 2219249 · B13152 · 13152C · RAD13152 · A13152 · 606798 · CR13152 · 2481211 · TO3010334 · 2778 · 4113152 · 1641022160 · RA13152C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    17788000045933596, 8013152, RK1571, 13152, 3557, C13152, 2219249, B13152, 13152C, RAD13152, A13152, 606798, CR13152, 2481211, TO3010334, 2778, 4113152, 1641022160, RA13152C

    Frequently Asked Questions

    Is the CU13152 one of the radiators for the 2009-2013 Toyota Corolla 4-cylinder 1.8L?

    Yes. Spectra Premium CU13152 is a direct-fit radiator for the 2009-2013 Toyota Corolla 4-cylinder 1.8L, and the car takes one.

    Does the CU13152 radiator come with a transmission oil cooler?

    Yes. Spectra Premium CU13152 has an internal concentric transmission oil cooler with 8mm hose barb fittings. A frame and an engine oil cooler are not included.

    What are the inlet and outlet sizes on this radiator?

    The inlet is 1.375 in across and the outlet is 1.3125 in. The inlet sits at the bottom left and the outlet at the bottom right of this cross-flow core.

    Is this radiator all aluminum?

    No. The core is aluminum and the tanks are plastic.

    How can I tell if this radiator is leaking?

    With the engine off and cool, look for coolant stains or cracks on the core and tanks. A shop can pressure-test the cooling system if nothing is visible.
