Radiator for 2007-2018 Freightliner Sprinter 2500 & More - Spectra Premium CU13254

$300.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13254
    UPC: 671607780840
    Condition: New
    Weight: 45.89 LBS
    Item Package Quantity: 1
    $300.99
    Adding to cart… The item has been added

    Have questions?

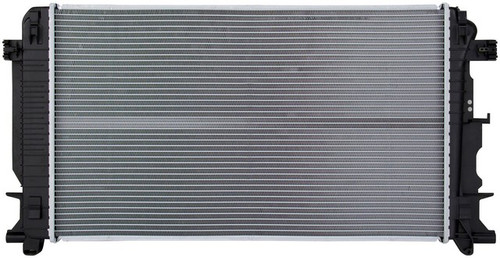

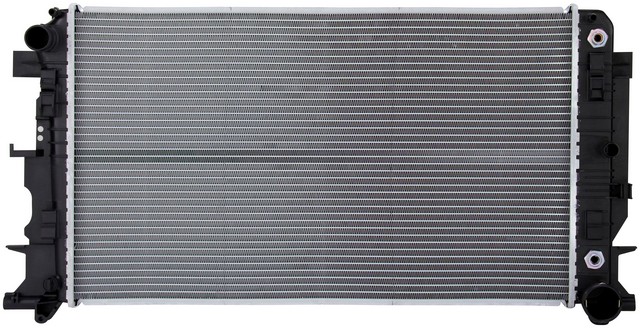

    Spectra Premium Radiator P/N:CU13254
    Spectra Premium Radiator P/N:CU13254
    $300.99
    $300.99

    Spectra Premium CU13254 radiator for the 2007-2008 Freightliner Sprinter 2500 V6 3.5L, the 2007-2018 Sprinter 2500 V6 3.0L and other vehicles carries heat out of the engine coolant through a one-row aluminum core. Its structure and design are built for the durability and expectations of the OE part.

    • Aluminum core with plastic tanks
    • Cross-flow layout with a single core row
    • Built-in transmission oil cooler with 5 plates and quick-connect fittings
    • Saddle mounting type
    • Inlet at the top left and outlet at the bottom right, with 1.375 inch and 1.6875 inch connections

    Quick facts

    • Part: Spectra Premium CU13254 radiator
    • Fits: the 2007-2008 Freightliner Sprinter 2500 V6 3.5L, the 2007-2018 Sprinter 2500 V6 3.0L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant leaks, damp or crusty spots on the core or tanks, and an engine that runs hotter than usual can all mean a radiator is failing. Before you replace it, look over the seams, tanks and fittings with the engine off and cool, because a loose hose or cap can leave similar wet marks.

    Fits

    Fits include the 2007-2009 Dodge Sprinter 2500 V6 3.0L, the 2007-2008 Sprinter 2500 V6 3.5L and the 2010-2018 Mercedes-Benz Sprinter 2500 V6 3.0L. If your Sprinter or year is not named here, look up your year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Core height: 26.6875 inch
    • Core width: 15.6875 inch
    • Core thickness: 1.25 inch
    • Core rows: 1
    • Inlet diameter: 1.375 inch
    • Outlet diameter: 1.6875 inch
    • Inlet header: 16.5625 inch long, 2.0625 inch wide
    • Outlet header: 16.5625 inch long, 2.0625 inch wide
    • Inlet location: top left; outlet location: bottom right
    • Transmission oil cooler distance between fittings: 12 inch
    • Quantity per vehicle: 1

    Build and materials

    • Flow type: cross flow
    • Mounting type: saddle
    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: internal, plated, 5 plates, quick-connect fittings
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame is not included. A vehicle takes one radiator.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is CU13254 the right Dodge Sprinter 2500 radiator for a 2007-2009 V6 3.0L?

    Yes. Spectra Premium CU13254 fits the 2007-2009 Dodge Sprinter 2500 V6 3.0L and the 2007-2008 Sprinter 2500 V6 3.5L. The quantity is one radiator per vehicle.

    Does the Spectra Premium CU13254 come with a transmission oil cooler?

    Yes. Spectra Premium CU13254 has a built-in plated transmission oil cooler with quick-connect fittings, 12 inch between fittings. It has no engine oil cooler, and no frame is included.

    How big is the core on this cross-flow radiator?

    The aluminum core is 26.6875 inch high, 15.6875 inch wide and 1.25 inch thick, with one core row.

    Which side is the inlet on this radiator?

    The inlet is at the top left with a 1.375 inch diameter. The outlet is at the bottom right with a 1.6875 inch diameter.

    Could a hot-running engine and low coolant point to a leaking radiator?

    They can, since a leaking or clogged radiator cools less. Damp or crusty spots on the core or tanks are other signs; a shop can pressure-test the cooling system.
