Radiator for 1993-1997 Jeep Grand Cherokee & More - Spectra Premium CU1394

$187.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU1394
    UPC: 671607704389
    Condition: New
    Weight: 31.73 LBS
    Item Package Quantity: 1
    $187.99
    Adding to cart… The item has been added

    Have questions?

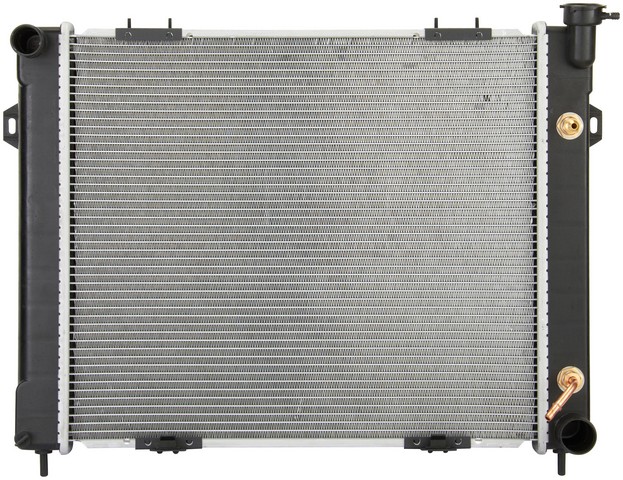

    Spectra Premium Radiator P/N:CU1394
    Spectra Premium Radiator P/N:CU1394
    $187.99
    $187.99

    Spectra Premium CU1394 radiator for the 1993-1997 Jeep Grand Cherokee V8 5.2L and other vehicles cools the engine coolant before it returns to the engine. Its structure and design are built to take on the same durability and expectations as the OE.

    • Aluminum core with plastic tanks
    • Single-row, cross-flow core measuring 22.3125 x 19.1875 x 1.25 inches
    • Internal transmission oil cooler with 3 plates and 5/8-18 UNF Female/Hose Barb 10mm fittings
    • 1.5 inch inlet at the top left and 1.75 inch outlet at the bottom right
    • Bottom post / top saddle mounting

    Quick facts

    • Part: Spectra Premium CU1394 radiator
    • Fits: 1993-1997 Jeep Grand Cherokee V8 5.2L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A coolant leak, an engine that runs hot or coolant stains under the car can mean the radiator is failing. These signs alone do not prove the radiator is the problem, since a worn thermostat can cause overheating too.

    Fits

    This is a direct-fit replacement radiator for the 1993-1997 Jeep Grand Cherokee V8 5.2L and for the 1993 Jeep Grand Wagoneer V8 5.2L, with one radiator per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 22.3125 in
    • Core width: 19.1875 in
    • Core thickness: 1.25 in
    • Core rows: 1
    • Inlet diameter: 1.5 in
    • Outlet diameter: 1.75 in
    • Inlet and outlet header: 20.5625 in long, 2.375 in wide
    • Inlet location: top left; outlet location: bottom right
    • Mounting type: bottom post / top saddle
    • Transmission oil cooler distance between fittings: 12 in

    Build and materials

    • Flow type: cross flow
    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: internal, plated, 3 plates
    • Transmission oil cooler fittings: 5/8-18 UNF Female/Hose Barb 10mm
    • Condition: new
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Spectra Premium CU1394 radiator fit the 1993 Jeep Grand Wagoneer V8 5.2L?

    Yes. Spectra Premium CU1394 fits the 1993 Jeep Grand Wagoneer V8 5.2L, which takes one radiator.

    Does this radiator have a built-in transmission oil cooler?

    Yes. The radiator has an internal transmission oil cooler with 3 plates and 5/8-18 UNF Female/Hose Barb 10mm fittings, set 12 inches apart.

    What size are the inlet and outlet on the Spectra Premium CU1394 radiator?

    On Spectra Premium CU1394, the inlet is 1.5 inches and sits at the top left. The outlet is 1.75 inches and sits at the bottom right.

    Is the core of this radiator aluminum or plastic?

    The core is aluminum and the tanks are plastic. It is a single-row, cross-flow core.

    Does this radiator come with a frame?

    No. This radiator comes without a frame, and no engine oil cooler is included.
