Radiator for 2005-2009 Subaru Outback & More - Spectra Premium CU2779

$166.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2779
    UPC: 671607752274
    Condition: New
    Weight: 19.91 LBS
    Item Package Quantity: 1
    $166.99
    Adding to cart… The item has been added

    Have questions?

    Spectra Premium Radiator P/N:CU2779
    Spectra Premium Radiator P/N:CU2779
    $166.99
    $166.99

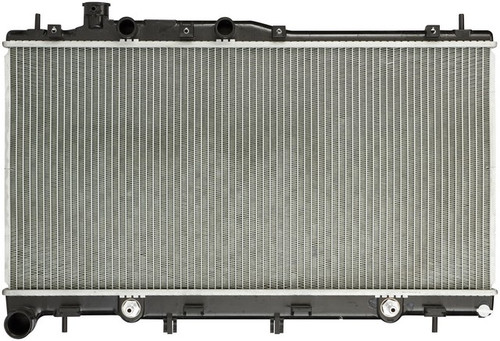

    Spectra Premium CU2779 radiator for the 2005-2009 Subaru Outback H6 3.0L and other vehicles cools engine coolant as it flows through the core. Its structure and design are built to carry the same durability expectations as the OE radiator.

    • Aluminum core with one row
    • Plastic tanks on a down flow layout
    • Internal plated transmission oil cooler with 3 plates
    • 10 mm hose barb fittings on the transmission oil cooler
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU2779 radiator
    • Fits: 2005-2009 Subaru Outback H6 3.0L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A coolant leak at the tanks or core, a level that keeps dropping, or an engine that runs hot can point to a failing radiator. A stuck thermostat, a weak water pump, a worn radiator cap or a split hose can be behind the same signs, so find the cause before buying.

    Fits

    This radiator fits the 2005-2009 Subaru Outback H6 3.0L and the 2008-2009 Subaru Legacy H6 3.0L. This listing is one radiator, and the 2005-2009 Subaru Outback H6 3.0L takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 27.5 in wide, 13.75 in high, 0.625 in thick
    • Inlet diameter: 1.125 in
    • Outlet diameter: 1.5625 in
    • Inlet header: 28.375 in long, 1.4375 in wide
    • Outlet header: 28.375 in long, 1.6875 in wide
    • Inlet and outlet locations: inlet top left, outlet bottom right
    • Transmission oil cooler distance between fittings: 14.75 in
    • Mounting type: Post

    Build and materials

    • Core material: Aluminum, 1 row
    • Tank material: Plastic
    • Flow type: Down flow
    • Transmission oil cooler: internal, plated, 3 plates, 10 mm hose barb fittings
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with an internal transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 2779 · 24642793620462923 · 8012779 · RDK0024 · 2706 · 3142 · C2779 · 0ASU6139 · 2213607 · A2779 · 2779C · RAD2779 · 2402779 · 2480771 · SU3010151 · 2813 · 412779 · 45111AG04A · 9457 · RA2779C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    2779, 24642793620462923, 8012779, RDK0024, 2706, 3142, C2779, 0ASU6139, 2213607, A2779, 2779C, RAD2779, 2402779, 2480771, SU3010151, 2813, 412779, 45111AG04A, 9457, RA2779C

    Frequently Asked Questions

    Is this radiator a fit for the 2005-2009 Subaru Outback H6 3.0L?

    Yes. Spectra Premium CU2779 is listed for the 2005-2009 Subaru Outback H6 3.0L, which takes one radiator.

    Can I use this radiator in the 2008-2009 Subaru Legacy H6 3.0L?

    Yes. Spectra Premium CU2779 is listed for the 2008-2009 Subaru Legacy H6 3.0L, and that vehicle takes one radiator.

    Does this radiator come with a transmission oil cooler?

    Yes. It has an internal plated transmission oil cooler with 3 plates and 10 mm hose barb fittings. An engine oil cooler and a frame are not included.

    What are the core and tank materials on the CU2779 radiator?

    The core is aluminum and the tanks are plastic. The core is one row, 27.5 in wide by 13.75 in high.

    Which signs can point to a failing radiator with an internal transmission cooler?

    Coolant leaks at the tanks or core, a coolant level that keeps dropping, or an engine that runs hot can mean it. Look only with the engine cool; a shop can pressure-test the system.
