Radiator for 2004-2020 Chevrolet Express 2500 & More - Spectra Premium CU2791

$214.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2791
    UPC: 671607749830
    Condition: New
    Weight: 50.98 LBS
    Item Package Quantity: 1
    $214.99
    Adding to cart… The item has been added

    Have questions?

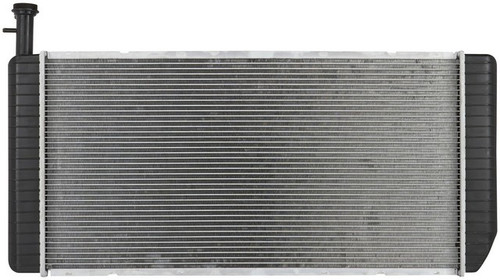

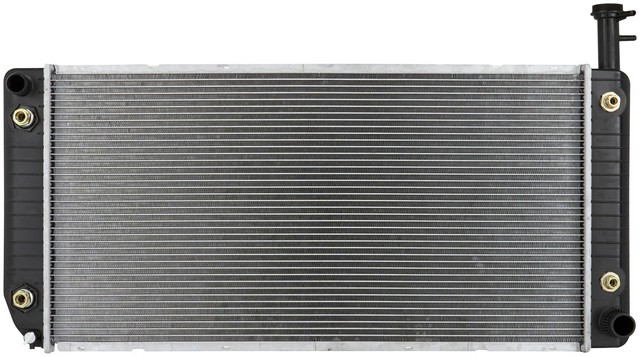

    Spectra Premium Radiator P/N:CU2791
    Spectra Premium Radiator P/N:CU2791
    $214.99
    $214.99

    Spectra Premium CU2791 radiator for the 2004-2017 Chevrolet Express 2500 V8 4.8L, the 2004-2020 Express 2500 V8 6.0L and other vehicles carries engine heat out of the coolant as it passes through the core. The structure and design are built to the same durability expectations as the OE radiator.

    • Cross-flow design with a single-row core
    • Built-in engine oil cooler, plated type with 4 plates
    • Built-in transmission oil cooler, plated type with 5 plates
    • Quick-connect fittings on both oil coolers, 11.5 inches apart

    Quick facts

    • Part: Spectra Premium CU2791 radiator
    • Fits: the 2004-2017 Chevrolet Express 2500 V8 4.8L, the 2004-2020 Express 2500 V8 6.0L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    A leak at the tanks or core, an engine that runs hot, or coolant that keeps going down can mean the radiator is failing. Before you replace it, rule out a loose hose clamp, a sticking thermostat or a weak water pump, since each of those can leak or overheat on its own. Each vehicle takes one radiator, and this listing is a single unit.

    Fits

    This radiator is a direct-fit replacement for the 2004-2020 Chevrolet Express 3500 V8 6.0L, the 2005-2017 Express 3500 V8 4.8L, the 2004-2017 GMC Savana 2500 V8 4.8L and the 2004-2020 Savana 2500 V8 6.0L. If your vehicle is not named above, look up your year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Core size: 34 in high, 17.25 in wide, 1 in thick
    • Inlet: top left, 1.3125 in diameter
    • Outlet: bottom right, 1.5625 in diameter
    • Inlet and outlet headers: 18.625 in long, 3.1875 in wide
    • Mounting type: saddle
    • Quantity per vehicle: 1

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator. A frame is not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right Chevy Express 2500 radiator for a 2004-2020 model with the V8 6.0L?

    Yes. Spectra Premium CU2791 fits the 2004-2020 Chevrolet Express 2500 V8 6.0L, and it also fits the 2004-2017 Express 2500 V8 4.8L.

    Does the Spectra Premium CU2791 radiator come with a frame?

    No. The frame is not included with Spectra Premium CU2791. The engine oil cooler and the transmission oil cooler are already built into the radiator.

    Do the oil coolers on this radiator use quick-connect fittings?

    Yes. The engine oil cooler and the transmission oil cooler both have quick-connect fittings, and the fittings on each sit 11.5 inches apart.

    What signs can point to a failing radiator with built-in oil coolers?

    Coolant leaking at the tanks or core, an engine that runs hot, or coolant that keeps disappearing can each mean the radiator has a problem. A shop can pressure-test it.

    How big is the core on the Spectra Premium CU2791 radiator?

    The core is 34 inches high, 17.25 inches wide and 1 inch thick, with a single row. Spectra Premium CU2791 has a 1.3125-inch inlet and a 1.5625-inch outlet.
