Radiator for 1989-1994 Chevrolet Cavalier & More - Spectra Premium CU768

$286.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU768
    UPC: 671607730470
    Condition: New
    Weight: 47.32 LBS
    Item Package Quantity: 1
    $286.99
    Adding to cart… The item has been added

    Have questions?

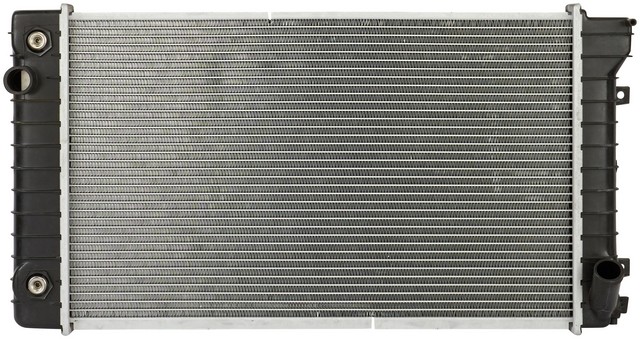

    Spectra Premium Radiator P/N:CU768
    Spectra Premium Radiator P/N:CU768
    $286.99
    $286.99

    Spectra Premium CU768 radiator for the 1989-1994 Chevrolet Cavalier V6 2.8L, the 1990-1994 Cavalier V6 3.1L and other vehicles carries engine coolant through its core so heat can leave the engine. Its structure and design are built to match the durability and expectations of the OE.

    • Single-row aluminum core with plastic tanks
    • Cross-flow layout with the inlet at the top left and the outlet at the bottom right
    • Internal transmission oil cooler with 1/2-20 UNF female fittings
    • Saddle mounting type

    Quick facts

    • Part: Spectra Premium CU768 radiator
    • Fits: 1989-1994 Chevrolet Cavalier V6 2.8L, the 1990-1994 Cavalier V6 3.1L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant stains or drips, a temperature gauge that runs hot, or a cracked plastic tank can all mean the radiator needs replacing. Before you replace the radiator, rule out the cap, the hoses and the thermostat, because a radiator is not the only part that can run an engine hot. If the radiator is the cause, this one replaces it. A car takes a single radiator, and this listing is that one.

    Fits

    It fits the 1989-1994 Chevrolet Cavalier V6 2.8L, the 1990-1994 Cavalier V6 3.1L and the 1991-1994 Pontiac Sunbird V6 3.1L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 23.625 in high, 14.125 in wide, 1.25 in thick
    • Core rows: 1
    • Inlet and outlet diameter: 1.3125 in each
    • Inlet and outlet header: 15.6875 in long, 2.4375 in wide
    • Transmission oil cooler distance between fittings: 11.5 in
    • Mounting type: Saddle

    Build and materials

    • Flow type: Cross flow
    • Core material: Aluminum
    • Tank material: Plastic
    • Transmission oil cooler: internal, plated, 3 plates, 1/2-20 UNF female fittings
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame is not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will CU768 work as a radiator for the 1989-1994 Chevy Cavalier V6 2.8L?

    Yes. Spectra Premium CU768 fits the 1989-1994 Chevrolet Cavalier V6 2.8L and the 1990-1994 Cavalier V6 3.1L.

    Does CU768 work as a radiator for the 1991-1994 Pontiac Sunbird V6 3.1L?

    Yes. The 1991-1994 Pontiac Sunbird V6 3.1L is on the fit list for this radiator, and a car takes a single one.

    Is this Spectra Premium radiator a cross-flow or a down-flow design?

    Spectra Premium CU768 is a cross-flow radiator, with the inlet at the top left and the outlet at the bottom right. Both openings are 1.3125 inches in diameter.

    Does this radiator include a transmission oil cooler?

    Yes, it has an internal transmission oil cooler with 1/2-20 UNF female fittings; a frame and an engine oil cooler are not included.

    How big is the core on the CU768 radiator?

    The single-row aluminum core is 23.625 inches high, 14.125 inches wide and 1.25 inches thick. It uses a saddle mounting type.
