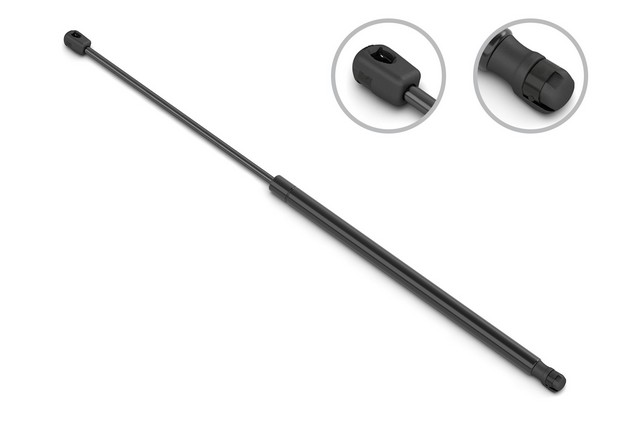

Help hold the back glass open and control its motion with the Stabilus back glass lift support, part number 4B-028480, a direct-fit replacement for the 1995-2005 Chevrolet Blazer and the 1995-2001 GMC Jimmy. This hydraulically dampened, gas-charged lift support comes from Stabilus's Lift-O-Mat line. The line pairs gas pressure with hydraulic damping, so the glass moves in a smooth, controlled way as it opens and closes.
Specifications: 17.48 in (444 mm) extended length, 11.08 in (281.5 mm) compressed length, 6.4 in (162.5 mm) stroke, and 34 lb maximum force. It has nylon ball-socket ends on both sides with an 18 mm (0.709 in) ball diameter. Mounting hardware is not included.
The listed applications use two supports, and Stabilus recommends replacing them in pairs for best results. A support may need replacing if the back glass won't stay up, drifts down, or feels harder to lift than it should. Country of origin: United States.
Interchange: 819-5638
15678975 · D95544DL · 84642 · D95544 · 901285 · 8195638 · 028480 · 4794LR · 4798LY · 8463IO · 9121BI · 4642 · D4642 · 613149 · SG330019 · TSG330019
This part cross-references / interchanges with the following part numbers:
Which vehicles does this lift support fit?
It is a direct-fit replacement for the 1995-2005 Chevrolet Blazer and the 1995-2001 GMC Jimmy with all engines. Check the Buyer's Guide tab to confirm your vehicle.
What does a back glass lift support do?
It uses gas pressure to help lift the back glass and hold it open. Hydraulic damping controls the glass's motion as it opens and closes.
What are the specifications of the Stabilus 4B-028480?
It has a 17.48 in (444 mm) extended length, 11.08 in (281.5 mm) compressed length, 6.4 in (162.5 mm) stroke and 34 lb maximum force, with nylon ball-socket ends.
Should I replace both supports at once?
The listed applications use two supports, and Stabilus recommends replacing them in pairs for best results. Mounting hardware is not included.
What are signs a back glass lift support may need replacing?
The glass may not stay open, may drift down, or may feel heavy to lift. Diagnose the cause first, because other issues can cause similar symptoms.
