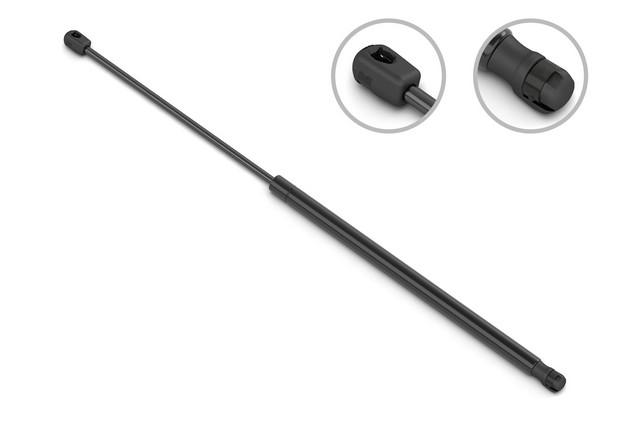

Stabilus Hood Lift Support P/N:5B-390240

Help your hood rise smoothly and stay open while you work with the Stabilus hood lift support, part number 5B-390240, a direct-fit replacement for the 2007-2010 Hyundai Entourage and 2006-2012 Kia Sedona. It also fits the 2014 Kia Sedona. This gas-charged support has hydraulic damping and belongs to the Stabilus Lift-O-Mat line, which combines gas pressure with damping for smooth, controlled motion.

• Labyrinth piston: The patented Stabilus labyrinth piston is designed for smooth, clog-free operation as the hood opens and closes.
• Clog-free design: Intended to prevent binding caused by contamination.
• Corrosion resistance: The part coatings are tested to automotive standards for corrosion resistance.
• OE-based design: Based on the original equipment design for proper fit, form and function. It installs without special tools.

Lift-O-Mat damping uses an oil channeling system and a precision seal-guide system. Stabilus tunes the oil viscosity and piston configuration to each application.

Specifications:

• Extended length: 13.46 in (342 mm)
• Compressed length: 8.96 in (227.5 mm)
• Stroke: 4.5 in (114.5 mm)
• Maximum force: 92 lb
• Ends: nylon ball sockets on both ends, 18 mm (0.709 in) ball diameter

Mounting hardware is not included. Country of origin: United States.

Signs that a hood support may need replacing include a hood that drifts down, won't stay open on its own, or feels heavy to lift. The listed applications use two supports, and Stabilus recommends replacing them in pairs for best results.

Interchange: 81161-4D000 · 81161-4D000DS · 81171-4D000 · 80 442 04 · 819-6507
E95392DL · 86326 · 811614D000 · 811714D000 · 811614D000DS · 8044204 · E95392 · 901354 · 8196507 · 390240 · 46326 · 6326 · E6326 · 613755 · SG350006 · TSG350006
