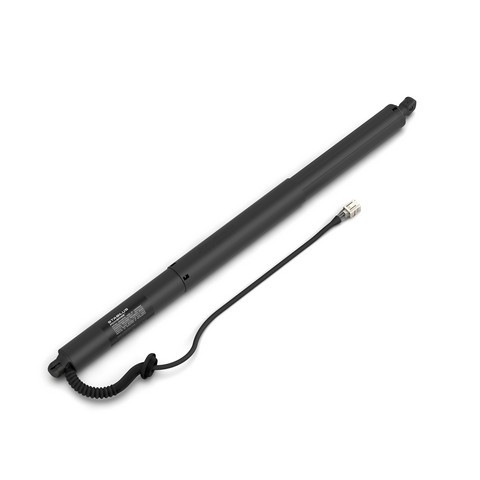

Stabilus 2A-411596 left liftgate lift support for the 2017-2019 BMW 340i GT xDrive and other vehicles powers the liftgate open and closed. Its smooth, controlled movement helps restore the factory convenience of a powered liftgate.
- POWERISE electromechanical spindle drive for powered opening and closing
- Stop-and-hold positioning that supports intermediate stops for programmable opening height
- Integrated spring assist that helps reduce operating effort during manual operation
- Automotive-grade materials selected for corrosion resistance, durability, toughness and wear resistance
- Ball socket at both ends, with nylon end material
Quick facts
- Part: Stabilus 2A-411596 liftgate lift support
- Fits: 2017-2019 BMW 340i GT xDrive and other vehicles
- Position: Left
- Material: Nylon (both ball socket ends)
- Condition: New
A liftgate that opens or closes slowly, stops partway, or no longer holds a set height can mean the drive is worn. These signs can have other causes, so with the engine off, look over the ball sockets and the wiring connector for damage before replacing the part.
Fits
This left liftgate lift support fits the 2017-2019 BMW 340i GT xDrive, the 2017-2018 BMW 330i GT xDrive and the 2014-2016 BMW 328i GT xDrive. It is a direct-fit replacement built to OE specification for exact fit, form and function. This listing is one left liftgate lift support, and the fitment counts one in that position.
Specifications
Fit and size
- Position: left
- Quantity per application: 1
- Stroke length: 109 mm (4.29 in)
- Compressed length: 556 mm (21.89 in)
- Extended length: 665 mm (26.18 in)
- End fittings: ball socket at both ends
Build and materials
- Type: electromechanical
- End material: nylon at both ends
- Connector: rectangular, female adapter
- Wiring harness: included
- Condition: new
- Country of origin: Germany
In the box
One left liftgate lift support with its wiring harness. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.
Installation notes
- Installation instructions are included.
- No modification, lubrication or adjustment is required.
Interchange: 51 24 7 298 983
073389 · 589392 · 929023
This part cross-references / interchanges with the following part numbers:
51 24 7 298 983, 51247298983, 073389, 589392, 929023
Frequently Asked Questions
Does the Stabilus 2A-411596 fit the 2014-2016 BMW 328i GT xDrive?
Yes. Stabilus 2A-411596 is a left liftgate lift support listed for the 2014-2016 BMW 328i GT xDrive.
Is this Stabilus liftgate lift support powered or a plain spring strut?
It is powered. Stabilus 2A-411596 is an electromechanical POWERISE spindle drive that opens and closes the liftgate, with integrated spring assist for manual operation.
Does this left liftgate lift support come with a wiring harness and mounting hardware?
It includes a wiring harness and installation instructions. Mounting hardware is not included, so plan on new fasteners.
How long is the stroke on this liftgate lift support?
The stroke is 109 mm (4.29 in). The part measures 556 mm (21.89 in) compressed and 665 mm (26.18 in) extended.
Does installing this liftgate lift support need any modification?
No. It is a direct fit that needs no modification, lubrication or adjustment, and installation instructions are included.
