Right Liftgate Lift Support for 2021-2024 Chrysler Pacifica & More - Stabilus 2A-711796

$348.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 2A-711796
    UPC: 194879046310
    Condition: New
    Weight: 3.98 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $348.99
    Adding to cart… The item has been added

    Have questions?

    Stabilus Liftgate Lift Support P/N:2A-711796
    Stabilus Liftgate Lift Support P/N:2A-711796
    $348.99
    $348.99

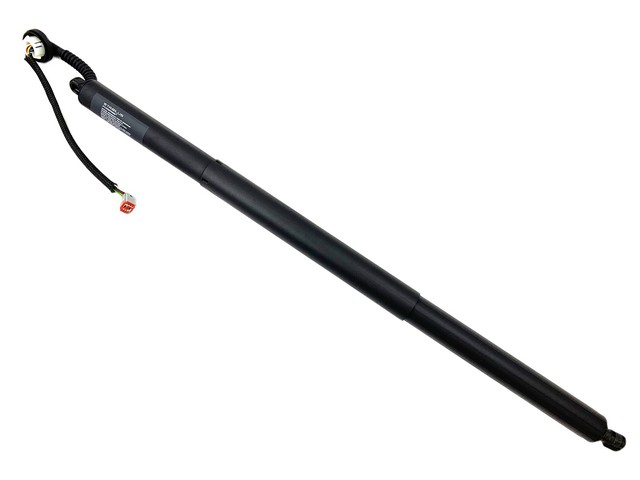

    Stabilus 2A-711796 right liftgate lift support for the 2021-2024 Chrysler Pacifica and other vehicles gives the liftgate powered opening and closing.

    • Automotive-grade materials chosen for corrosion resistance, durability, toughness and wear resistance
    • Stabilus POWERISE electromechanical spindle drive for powered opening and closing with controlled motion
    • Stop-and-hold positioning supports intermediate stops for a programmable opening height
    • Integrated spring assist helps reduce operating effort during manual operation
    • Ball-socket ends at both ends, made of nylon

    Quick facts

    • Part: Stabilus 2A-711796 liftgate lift support
    • Fits: 2021-2024 Chrysler Pacifica and other vehicles
    • Position: Right
    • Material: Nylon ball-socket ends
    • Condition: New

    A liftgate that stops opening or closing under power, halts at odd heights or feels heavy to lift by hand can point to a worn or failed liftgate lift support. A liftgate switch, a wiring or connector fault or a low battery can be behind the same signs, so find the cause before buying.

    Fits

    It fits the 2021-2024 Chrysler Pacifica and the 2021-2024 Chrysler Voyager, with one for the right side on each. It is engineered to OE specification for exact fit, form and function. This listing is one right liftgate lift support; the left side is a separate part, and the two are normally replaced together.

    Specifications

    Fit and size

    • Position: Right
    • Quantity per vehicle: 1 for the right side
    • Compressed length: 524 mm (20.63 in)
    • Extended length: 754 mm (29.69 in)
    • Stroke length: 230 mm (9.06 in)

    Build and materials

    • Type: Electromechanical
    • Ends: Ball socket on both ends
    • End material: Nylon on both ends
    • Connector: Female, rectangular, adapter
    • Condition: New
    • Country of origin: Mexico

    In the box

    One right liftgate lift support, a wiring harness and installation instructions. Mounting hardware is not included, so plan on new fasteners.

    Installation notes

    • Installation instructions come with the part.
    • No modification, lubrication or adjustment is required.

    Interchange: 6845 5759AA · 6845 5759AB · 6845 5759AC

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    6845 5759AA, 68455759AA, 6845 5759AB, 68455759AB, 6845 5759AC, 68455759AC

    Frequently Asked Questions

    Does the Stabilus 2A-711796 fit the 2021-2024 Chrysler Voyager?

    Yes. Stabilus 2A-711796 fits the 2021-2024 Chrysler Voyager. It is the right-side part, and the left side is ordered separately.

    Is the Stabilus liftgate lift support a POWERISE electromechanical drive?

    Yes. Stabilus 2A-711796 has a POWERISE electromechanical spindle drive for powered opening and closing, plus an integrated spring that helps reduce effort in manual operation.

    Does the right liftgate lift support come with a wiring harness and mounting hardware?

    It includes a wiring harness and installation instructions. Mounting hardware is not included, so plan on new fasteners.

    How long is this liftgate lift support compressed and extended?

    Compressed length is 524 mm (20.63 in) and extended length is 754 mm (29.69 in). The stroke is 230 mm (9.06 in).

    Does this liftgate lift support need any adjustment or lubrication to install?

    No. It needs no modification, lubrication or adjustment, and installation instructions come with the part.
