Liftgate Lift Support for 2005-2009 Chevrolet Uplander & More - Stabilus 2B-029080

$25.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 2B-029080
    UPC: 194879003290
    Condition: New
    Weight: 2.30 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $25.99
    Adding to cart… The item has been added

    Have questions?

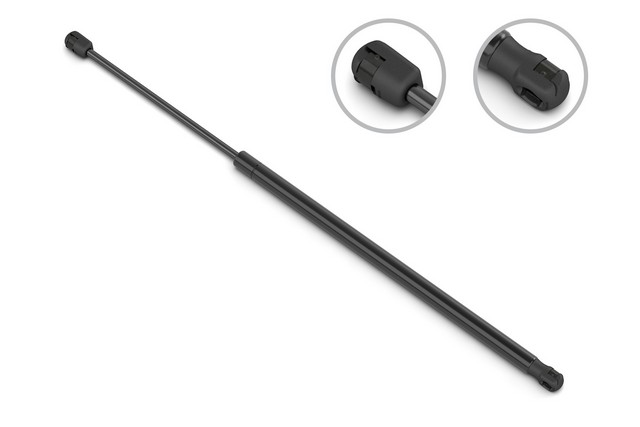

    Stabilus Liftgate Lift Support P/N:2B-029080
    Stabilus Liftgate Lift Support P/N:2B-029080
    $25.99
    $25.99

    Stabilus 2B-029080 liftgate lift support for the 2005-2009 Chevrolet Uplander and other vehicles uses nitrogen pressure to lift and hold the liftgate open. This Stabilus liftgate lift support replaces the worn OE unit to help restore proper liftgate operation.

    • LIFT-O-MAT® nitrogen-charged gas lift support with hydraulic damping
    • Patented Labyrinth Piston routes fluid through a precision passage for smooth, clog-free motion control and a controlled stop
    • Damping profile helps prevent bouncing and shuddering of the liftgate as it opens
    • High-precision sealing and corrosion-resistant materials help maintain consistent performance across thousands of operating cycles
    • Fully sealed design needs no lubrication, adjustment or routine maintenance over its service life

    Quick facts

    • Part: Stabilus 2B-029080 liftgate lift support
    • Fits: 2005-2009 Chevrolet Uplander and other vehicles
    • Material: Nylon ends
    • Condition: New

    A liftgate that sinks back down, opens slowly or bounces and shudders can mean a worn lift support. Before replacing it, find the cause: with the vehicle off, look at the ball sockets and the cylinder for cracks, bends or fluid seepage, and leave any other testing to a shop. This listing is one lift support, and both sides are normally replaced together.

    Fits

    The 2005-2009 Chevrolet Uplander, the 1999-2009 Pontiac Montana and the 2005-2007 Buick Terraza are among the vehicles it fits. Open the "Vehicles it fits" section to check your exact model and engine. It is engineered to OE specification for exact fit, form and function with no modification required.

    Specifications

    Fit and size

    • Quantity per vehicle: 2
    • Stroke length: 222 mm (8.74 in)
    • Compressed length: 504 mm (19.84 in)
    • Extended length: 726 mm (28.58 in)
    • Maximum force: 177 lb
    • Ball diameter: 22 mm (0.866 in)

    Build and materials

    • Type: gas, nitrogen-charged with hydraulic damping
    • Ends: ball socket on both ends
    • End material: nylon
    • Condition: New
    • Country of origin: Mexico

    In the box

    One liftgate lift support; the vehicle takes two. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new pieces.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Stabilus 2B-029080 lift support fit the 2005-2009 Chevrolet Uplander?

    Yes. Stabilus 2B-029080 fits the 2005-2009 Chevrolet Uplander. For another model or engine, look it up in the "Vehicles it fits" section.

    Do the ball-socket ends on this lift support come with mounting hardware?

    No. The listing is one gas lift support with a nylon ball socket at each end, and mounting hardware is not included.

    How long is the stroke on the Stabilus 2B-029080?

    The Stabilus 2B-029080 has a 222 mm (8.74 in) stroke. It measures 504 mm (19.84 in) compressed and 726 mm (28.58 in) extended.

    Why does my liftgate bounce and shudder as it opens?

    A worn lift support can let the liftgate bounce, shudder, open slowly or sink back down. This hydraulically damped unit is designed to help prevent bouncing and shuddering on opening.

    What does the Labyrinth Piston do in this lift support?

    The patented Labyrinth Piston sends fluid through a precision passage. That manages how fast the support extends, giving smooth travel and a controlled stop.
