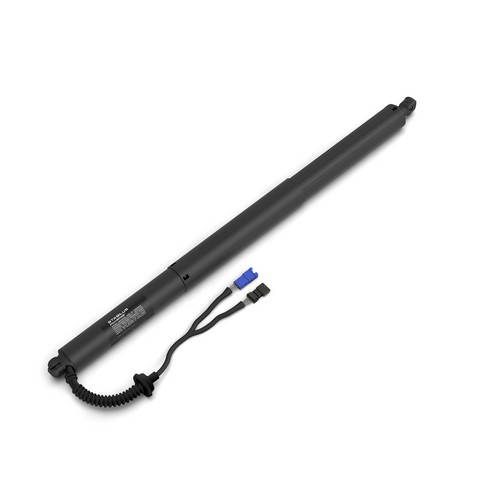

Liftgate Lift Support for 2019-2021 BMW X5 - Stabilus 3A-202012

$360.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 3A-202012
    UPC: 194879046037
    Condition: New
    Weight: 3.98 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $360.99
    Adding to cart… The item has been added

    Have questions?

    Stabilus Liftgate Lift Support P/N:3A-202012
    Stabilus Liftgate Lift Support P/N:3A-202012
    $360.99
    $360.99

    Stabilus 3A-202012 liftgate lift support for the 2019-2021 BMW X5 is a POWERISE electromechanical spindle drive that opens and closes the liftgate under power. This Stabilus liftgate lift support restores powered operation in place of the original unit.

    • POWERISE electromechanical spindle drive for smooth, controlled powered opening and closing
    • Stop-and-hold positioning supports intermediate stopping for programmable opening height
    • Integrated spring assist helps reduce operating effort and supports comfortable manual operation
    • Automotive-grade materials chosen for corrosion resistance, durability, toughness and wear resistance
    • Ball socket connection at both ends with a rectangular female connector

    Quick facts

    • Part: Stabilus 3A-202012 liftgate lift support
    • Fits: 2019-2021 BMW X5
    • Material: Nylon (ball socket ends)
    • Condition: New

    A liftgate that opens slowly, stalls partway or won't stay open can mean the drive is worn. Before you replace this lift support, rule out other causes, such as a blown fuse or a fault in the liftgate wiring. This listing is one lift support, and the 2019-2021 BMW X5 takes two; both are normally replaced together.

    Fits

    It is engineered to OE specification for exact fit, form and function on the 2019-2021 BMW X5.

    Specifications

    Fit and size

    • Quantity per vehicle: 2
    • Compressed length: 443.7 mm (17.47 in)
    • Extended length: 583.7 mm (22.98 in)
    • Stroke length: 140 mm (5.51 in)
    • Connector: adapter, rectangular, female

    Build and materials

    • Type: electro-mechanical
    • End 1 and End 2: ball socket, nylon
    • Wiring harness: included
    • Condition: New
    • Country of origin: Germany

    In the box

    One liftgate lift support with its wiring harness and installation instructions. Mounting hardware is not included, and the old fasteners may not be reusable, so plan on new ones.

    Installation notes

    • No modification, lubrication or adjustment is required.
    • The instructions in the box cover the steps.

    Interchange: 51 24 7 441 799 · E89076

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    51 24 7 441 799, 51247441799, E89076

    Frequently Asked Questions

    Is the Stabilus 3A-202012 liftgate lift support the right one for the 2019-2021 BMW X5?

    Yes. Stabilus 3A-202012 is engineered to OE specification for exact fit, form and function on the 2019-2021 BMW X5, with no modification required.

    Does the Stabilus POWERISE lift support come with its wiring harness?

    Yes, the wiring harness and installation instructions are included. Mounting hardware is not, so plan on new fasteners rather than reusing the old ones.

    How far does this POWERISE liftgate lift support extend?

    Stabilus 3A-202012 has a stroke of 140 mm (5.51 in), going from a compressed length of 443.7 mm (17.47 in) to an extended length of 583.7 mm (22.98 in).

    Can the POWERISE drive stop the liftgate partway open?

    Yes. Its stop-and-hold positioning supports intermediate stopping, which is what the programmable opening height function uses.

    Does this liftgate lift support need lubrication or adjustment when installed?

    No. It needs no modification, lubrication or adjustment, and installation instructions come with the part.
