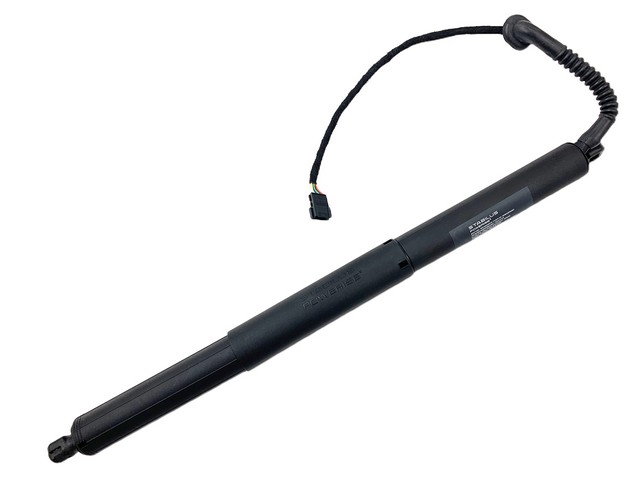

Stabilus 3A-411118 right liftgate lift support for the 2014-2017 BMW X5 opens and closes the liftgate under power. It uses a POWERISE® electromechanical spindle drive to restore powered operation for the original lift support.
- POWERISE® electromechanical spindle drive for powered opening and closing with controlled motion
- Stop-and-hold positioning supports intermediate stopping for programmable opening height
- Integrated spring assist helps reduce operating effort and supports comfortable manual operation
- Ball socket ends in nylon at both ends
- Automotive-grade materials chosen for corrosion resistance, durability, toughness and wear resistance
Quick facts
- Part: Stabilus 3A-411118 liftgate lift support
- Fits: 2014-2017 BMW X5
- Position: Right
- Condition: New
A liftgate that opens slowly, stops partway or will not hold an intermediate height can mean this lift support is worn, though the liftgate latch and the wiring connector can also be behind those signs.
Fits
This is a direct-fit replacement for the 2014-2017 BMW X5, engineered to OE specification for exact fit, form and function. This listing is one right-side piece; the 2014-2017 BMW X5 takes one on that side, the left is a separate part, and the two are normally replaced together.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
- Compressed length: 400 mm (15.75 in)
- Extended length: 539 mm (21.22 in)
- Stroke length: 139 mm (5.47 in)
Build and materials
- Type: Electromechanical
- End types: Ball socket at both ends
- End material: Nylon at both ends
- Connector: Female, rectangular, adapter
- Wiring harness: Included
- Condition: New
- Country of origin: Mexico
In the box
One right liftgate lift support with its wiring harness and installation instructions. Mounting hardware is not included, so plan on new hardware rather than reusing the old.
Installation notes
- Installation instructions come with the part.
- No modification, lubrication or adjustment is required.
Interchange: 51 24 7 294 470
E89030R · 300715 · 836520 · PG5000R · 615017
This part cross-references / interchanges with the following part numbers:
51 24 7 294 470, 51247294470, E89030R, 300715, 836520, PG5000R, 615017
Frequently Asked Questions
Does the Stabilus 3A-411118 fit the 2014-2017 BMW X5 on the right side?
Yes. Stabilus 3A-411118 is the right-side liftgate lift support for the 2014-2017 BMW X5. The left side is a separate part.
Does this lift support come with its wiring harness and mounting hardware?
This lift support comes with its wiring harness and installation instructions. Mounting hardware is not included, so plan on new hardware.
How long is the stroke on this electromechanical lift support?
The stroke is 139 mm (5.47 in). The support measures 400 mm (15.75 in) compressed and 539 mm (21.22 in) extended.
Why would a power liftgate stop partway or not hold its height?
A liftgate that struggles to open, stops partway or will not hold an intermediate height can mean the lift support is worn. A shop can test the power liftgate system.
Does the Stabilus 3A-411118 need modification or lubrication to install?
No. The Stabilus 3A-411118 needs no modification, lubrication or adjustment, and the instructions packed with it cover installation.
