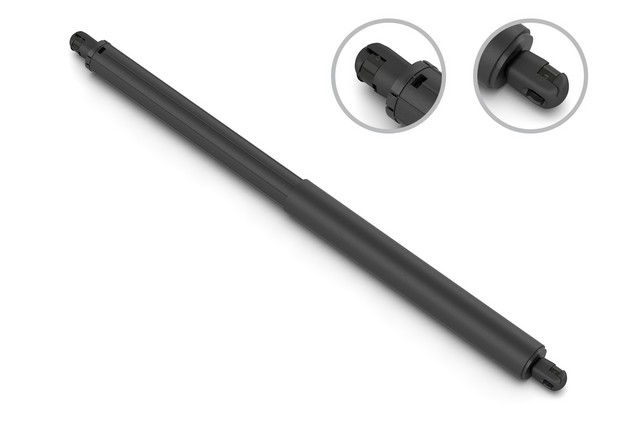

Stabilus 3C-845370 right liftgate lift support for the 2016-2019 Ford Explorer and other vehicles holds the liftgate open and controls how it moves. It replaces a worn lift support to restore proper liftgate operation.
- FEDERBEIN design pairs a gas spring with a mechanical coil spring to reduce temperature influence on opening and closing force
- Helps maintain lift in low temperatures where gas-spring-only designs can lose effectiveness
- Helps lower closing force at normal and elevated temperatures without reducing cold-weather opening performance
- Precision-formed groove in the tube manages extension speed for smooth motion and a controlled stop
- Fully sealed design needs no lubrication, adjustment or routine maintenance
Quick facts
- Part: Stabilus 3C-845370 liftgate lift support
- Fits: 2016-2019 Ford Explorer and other vehicles
- Position: Right
- Material: Nylon ends
- Condition: New
A liftgate that drifts down, rises slowly or will not stay open can mean the lift support is worn. A bent hinge, worn ball studs or a sticking latch can be behind the same signs, so find the cause before buying; if the support is the cause, this one replaces it.
Fits
It fits the 2016-2019 Ford Explorer and the 2016-2019 Ford Police Interceptor Utility, and each takes one on the right side. It is engineered to OE specification for exact fit, form and function with no modification required. This listing is one support for the right side; the left is a separate part, and both are normally replaced together.
Specifications
Fit and size
- Position: Right
- Quantity per application: 1
- Compressed length: 431.5 mm (16.99 in)
- Extended length: 629 mm (24.76 in)
- Stroke length: 197.5 mm (7.77 in)
Build and materials
- Type: Gas spring with mechanical spring assist
- End fittings: Ball socket on both ends, nylon
- Maximum force: 207 lb
- Condition: New
- Country of origin: Mexico
In the box
One liftgate lift support. Mounting hardware is not included, and old hardware may not be reusable, so plan on new pieces.
Interchange: GB5Z 78406A10-A
EL12253 · GB5378402A74AD · PG5032R · 300667 · 413250 · 584858 · 845370 · 615085 · SG204085 · TSG204085
This part cross-references / interchanges with the following part numbers:
EL12253, GB5378402A74AD, GB5Z 78406A10-A, GB5Z78406A10A, PG5032R, 300667, 413250, 584858, 845370, 615085, SG204085, TSG204085
Frequently Asked Questions
Is this a 2016-2019 Ford Explorer liftgate lift support for the right side?
Yes. Stabilus 3C-845370 is a right-side liftgate lift support for the 2016-2019 Ford Explorer. The left side is a separate part.
How does the Stabilus liftgate lift support 3C-845370 handle cold weather?
Stabilus 3C-845370 pairs a gas spring with a mechanical coil spring, which helps maintain lift in low temperatures where gas-spring-only designs can lose effectiveness.
Are the ball-socket ends on this lift support nylon?
Yes. Both ends are ball sockets made of nylon. Mounting hardware is not included with this lift support.
How far does this right liftgate lift support extend?
This right lift support measures 431.5 mm (16.99 in) compressed and 629 mm (24.76 in) extended, a stroke of 197.5 mm (7.77 in). Maximum force is 207 lb.
What are signs the gas spring in this liftgate lift support is worn out?
A visible oil leak, a bent tube or a liftgate that sags on its own can be signs of wear on the support.
