Right Liftgate Lift Support for 1995-1999 Subaru Legacy - Stabilus 4B-416620

$35.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 4B-416620
    UPC: 194879021379
    Condition: New
    Weight: 1.80 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $35.99
    Adding to cart… The item has been added

    Have questions?

    Stabilus Liftgate Lift Support P/N:4B-416620
    Stabilus Liftgate Lift Support P/N:4B-416620
    $35.99
    $35.99

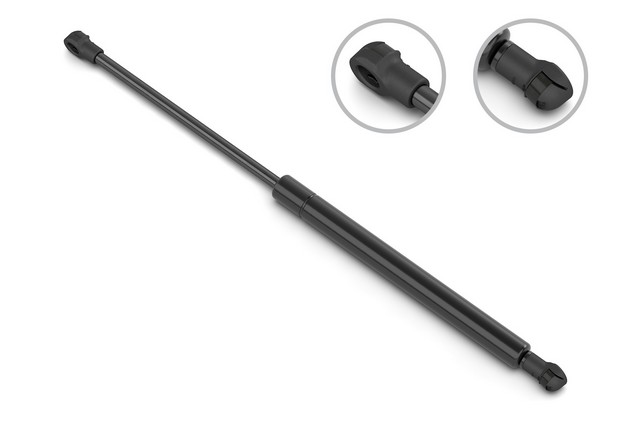

    Stabilus 4B-416620 right liftgate lift support for the 1995-1999 Subaru Legacy holds the liftgate open and controls how it rises. The Stabilus liftgate lift support replaces a worn unit with a nitrogen-charged LIFT-O-MAT® design that has hydraulic damping.

    • LIFT-O-MAT® nitrogen-charged gas lift support with hydraulic damping
    • Patented Labyrinth Piston manages extension speed for smooth motion and a controlled stop
    • Labyrinth Piston routes fluid through a precision passage for clog-free motion control
    • High-precision sealing and corrosion-resistant materials help maintain consistent performance across thousands of operating cycles
    • Fully sealed design with no routine maintenance over its service life

    Quick facts

    • Part: Stabilus 4B-416620 liftgate lift support
    • Fits: 1995-1999 Subaru Legacy
    • Position: Right
    • Material: Nylon ball socket ends
    • Condition: New

    A liftgate that drifts down, will not stay up, or bounces and shudders as it opens can mean the lift support is worn. Before you replace it, rule out a stiff hinge or latch, which can also make a liftgate sag or stick.

    Fits

    This lift support is a direct-fit replacement for the 1995-1999 Subaru Legacy, engineered to OE specification for exact fit, form and function with no modification required. This listing is one right-side support; the left side is a separate part, and both sides are normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Right
    • Quantity per vehicle: 1 (right side)
    • Compressed length: 340 mm (13.39 in)
    • Extended length: 561 mm (22.09 in)
    • Stroke length: 221 mm (8.7 in)
    • Ball diameter: 22 mm (0.866 in)
    • Maximum force: 114 lb

    Build and materials

    • Type: Gas, nitrogen-charged with hydraulic damping
    • Ends: Ball socket at both ends
    • End material: Nylon
    • Condition: New
    • Country of origin: Mexico

    In the box

    One right liftgate lift support, mounting hardware and installation instructions. This listing holds one support, and the right side takes one.

    Installation notes

    • No lubrication or adjustment is needed.
    • The instruction sheet in the box covers the installation steps.

    Interchange: 819-5655
    LS10524 · C95163DL · 84221R · 4221R · C4221R · C95163 · 900091 · 901444 · 416620 · 63269AE010 · 611629 · SG223003 · TSG223003

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    LS10524, C95163DL, 84221R, 4221R, C4221R, C95163, 900091, 901444, 819-5655, 8195655, 416620, 63269AE010, 611629, SG223003, TSG223003

    Frequently Asked Questions

    Is the Stabilus 4B-416620 lift support right for the 1995-1999 Subaru Legacy?

    Yes. Stabilus 4B-416620 is a right-side liftgate lift support for the 1995-1999 Subaru Legacy and installs with no modification. The left side is a separate part.

    What comes with this Stabilus right liftgate lift support?

    One right lift support, mounting hardware and installation instructions. The right side takes one support.

    How long is the Stabilus 4B-416620 lift support when extended?

    The Stabilus 4B-416620 measures 561 mm (22.09 in) extended and 340 mm (13.39 in) compressed, with a 221 mm (8.7 in) stroke. Both ends are ball sockets with a 22 mm ball diameter.

    Can a worn lift support make the liftgate bounce or shudder when it opens?

    Yes, a worn lift support can be one cause, along with a liftgate that drifts down or will not stay open. This unit's Labyrinth Piston manages extension speed for smooth, controlled opening.

    Does this lift support replace number 63269AE010?

    Yes. 63269AE010 is on this part's interchange list, along with 819-5655 and SG223003.
