Liftgate Lift Support for 1990-1999 Lamborghini Diablo - Stabilus 4B-615439

$30.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 4B-615439
    UPC: 194879012087
    Condition: New
    Weight: 1.20 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $30.99
    Adding to cart… The item has been added

    Have questions?

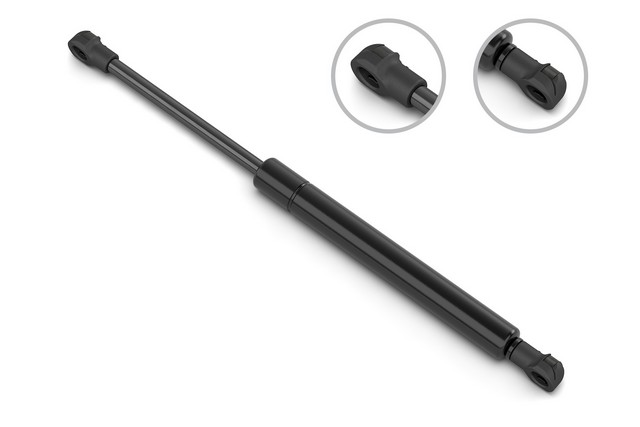

    Stabilus Liftgate Lift Support P/N:4B-615439
    Stabilus Liftgate Lift Support P/N:4B-615439
    $30.99
    $30.99

    Stabilus 4B-615439 liftgate lift support for the 1990-1999 Lamborghini Diablo holds the liftgate open and manages how fast it rises. This Stabilus liftgate lift support is a LIFT-O-MAT® unit that replaces the worn OE unit.

    • LIFT-O-MAT® nitrogen-charged gas lift support with hydraulic damping
    • Patented Labyrinth Piston routes fluid through a precision passage for smooth, clog-free motion control
    • Damping profile helps prevent bouncing and shuddering as the liftgate opens
    • High-precision sealing and corrosion-resistant materials help maintain consistent performance across thousands of operating cycles
    • Fully sealed design requires no lubrication, adjustment or routine maintenance

    Quick facts

    • Part: Stabilus 4B-615439 liftgate lift support
    • Fits: 1990-1999 Lamborghini Diablo
    • Material: Nylon (both ball socket ends)
    • Condition: New

    A liftgate that sinks, bounces or shudders as it opens can mean the support is worn. Before replacing it, look over the ball sockets and the studs they sit on for cracks or looseness, since a damaged mount can also let the liftgate move badly. A shop can test the rest.

    Fits

    It is a direct-fit replacement for the 1990-1999 Lamborghini Diablo, engineered to OE specification for exact fit, form and function with no modification required.

    Specifications

    Fit and size

    • Quantity per vehicle: 2
    • Compressed length: 290 mm (11.42 in)
    • Extended length: 499 mm (19.65 in)
    • Stroke length: 209 mm (8.23 in)
    • Ball diameter: 15 mm (0.591 in)
    • Thread length: 10 mm (0.394 in)

    Build and materials

    • Type: gas, nitrogen-charged, with hydraulic damping
    • End type: ball socket at both ends
    • End material: nylon
    • Maximum force: 27 lb
    • Condition: New
    • Country of origin: Germany

    In the box

    One liftgate lift support. Mounting hardware is not included, so plan on new hardware rather than reusing the old. The 1990-1999 Lamborghini Diablo takes two, so order two and fit them together.

    Interchange: LS12532 · 13292004388 · 9460302 · 615439 · SG369004 · TSG369004

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    LS12532, 13292004388, 9460302, 615439, SG369004, TSG369004

    Frequently Asked Questions

    Does the Stabilus 4B-615439 liftgate lift support fit the 1990-1999 Lamborghini Diablo?

    Yes. Stabilus 4B-615439 is listed for the 1990-1999 Lamborghini Diablo and is engineered for exact fit, form and function with no modification required.

    Does this Stabilus lift support come with mounting hardware?

    No. This listing is one liftgate lift support, and mounting hardware is not included, so plan on new hardware rather than reusing worn pieces. The vehicle takes two.

    How long is the Stabilus 4B-615439 lift support when extended?

    The Stabilus 4B-615439 measures 499 mm (19.65 in) extended and 290 mm (11.42 in) compressed, with a stroke length of 209 mm (8.23 in).

    What happens when a gas liftgate lift support wears out?

    A worn gas lift support can let the liftgate sink, bounce or shudder as it opens. If the liftgate no longer stays up, have it checked or replaced promptly.

    Does the sealed Stabilus liftgate lift support need lubrication or adjustment?

    No. Its fully sealed design requires no lubrication, adjustment or routine maintenance over its service life.
