Trunk Lid Lift Support for 2007-2011 Lexus GS350 & More - Stabilus 5B-017688

$28.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 5B-017688
    UPC: 194879010489
    Condition: New
    Weight: 0.90 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $28.99
    Adding to cart… The item has been added

    Have questions?

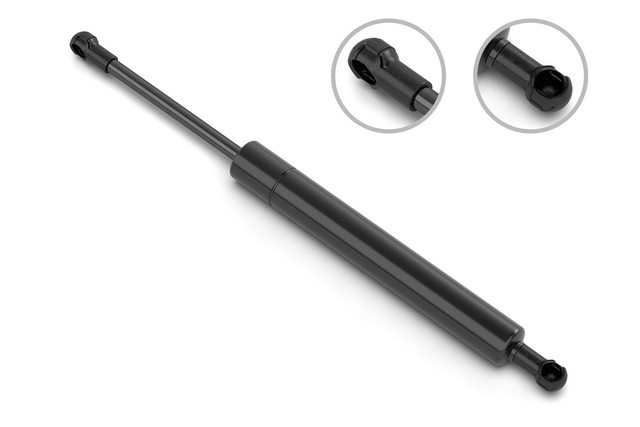

    Stabilus Trunk Lid Lift Support P/N:5B-017688
    Stabilus Trunk Lid Lift Support P/N:5B-017688
    $28.99
    $28.99

    Raise and hold your trunk lid with smooth, controlled motion using the Stabilus Trunk Lid Lift Support 5B-017688, a gas-charged Lift-O-Mat unit with dynamic damping speed control and an internal compression spring that helps release the lid from the latch. It installs as a direct-fit replacement for the 2007-2011 Lexus GS350, the 2007-2011 Lexus GS450h, and the 2008-2011 Lexus GS460 — see the "Vehicles it fits" section for engine-level details.

    • Dynamic damping speed control: gas flow is regulated by a longitudinal groove (velocity manifold) pressed into the tube wall for a fluid opening motion with no bouncing or jerking.
    • Integrated lift assist: an internal mechanical spring compresses in the closed position to give an added boost during initial opening.
    • Corrosion-resistant coatings: part coatings are tested to automotive standards for corrosion resistance.
    • Easy install: based on the OE design for proper fit, form, and function, and requires no special tools.

    Measures 12.36 inches. For best results, replace lift supports in pairs.

    Interchange: 64530-0W091
    645300W091 · E96654DL · 86654 · E96654 · 901783 · 017688 · 4178XD · 5307VJ · 9314TV · 6654 · E6654 · 613859 · SG429033 · TSG429033

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    LS10911, E96654DL, 86654, 645300W091, 64530-0W091, 6654, E6654, E96654, 901783, 017688, 4178XD, 5307VJ, 9314TV, 613859, SG429033, TSG429033

    Frequently Asked Questions

    What vehicles does this lift support fit?

    It is a direct-fit replacement for the 2007-2011 Lexus GS350, 2007-2011 Lexus GS450h, and 2008-2011 Lexus GS460. Check the "Vehicles it fits" section to confirm your vehicle.

    What does the internal compression spring do?

    The internal mechanical spring compresses in the closed position and gives an added boost during initial opening, helping lift the trunk lid off the latch mechanism when released.

    How does the dynamic damping work?

    A longitudinal groove pressed into the tube wall controls how gas flows around the piston, delivering a fluid opening motion with no bouncing or jerking.

    Should I replace both lift supports at once?

    For best results, replace lift supports in pairs so both sides open and hold with matched, consistent motion.

    Are special tools required for installation?

    No. This lift support is based on the OE design for proper fit, form, and function and is easy to install with no special tools.
