Stabilus Trunk Lid Lift Support P/N:5B-9283HM

Be the first to review this product
$28.99
MPN: 5B-9283HM
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Stabilus Trunk Lid Lift Support P/N:5B-9283HM
Stabilus Trunk Lid Lift Support P/N:5B-9283HM
$28.99

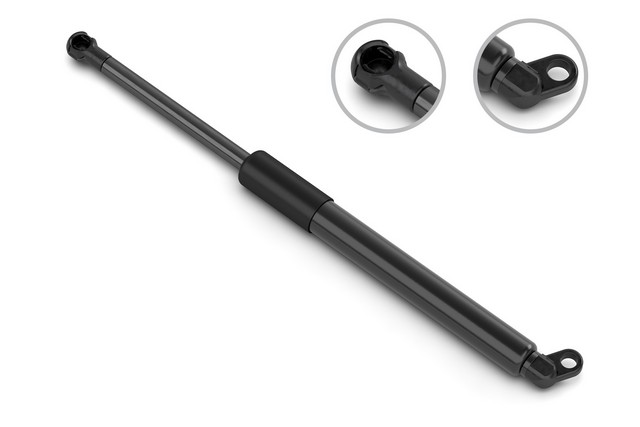

Smooth, controlled trunk opening starts with the Stabilus Trunk Lid Lift Support 5B-9283HM. This 13.66-inch gas-charged lift support drops in as a direct-fit replacement for the 2001-2003 BMW 525I, 1997-2000 and 1979-1981 BMW 528I, 2001-2006 BMW 530I, 1997-2003 BMW 540I, and 2000-2003 BMW M5. It uses dynamic damping speed control and an internal compression spring to help lift the trunk lid off the latch when released.

  • Dynamic damping speed control: A velocity-manifold groove pressed into the tube wall meters gas flow around the piston for a fluid opening motion with no bouncing or jerking, narrowing toward the end of the stroke for a gentle, controlled stop.
  • Internal mechanical spring: Compresses in the closed position to give an added boost during initial opening, helping release the lid from the latch.
  • Corrosion-resistant coatings: Part coatings tested to automotive standards for corrosion resistance.
  • Based on the OE design to support proper fit, form, and function; easy to install with no special tools.

When a gas lift support wears out, the trunk lid may drop, drift down, or feel weak on opening. For best results, replace in pairs. See the Buyer's Guide tab for engine details.

Interchange: 51 24 8 222 913 · 81 084 16 · 819-4182
51248222913 · 8108416 · 8194182 · E95909DL · 84539 · E95909 · 2792GJ · 7067LS · 9283HM · 4539 · E4539 · 613757 · 613777 · SG402050 · TSG402050

This part cross-references / interchanges with the following part numbers:

51 24 8 222 913, 51248222913, E95909DL, 84539, 81 084 16, 8108416, E95909, 819-4182, 8194182, 2792GJ, 7067LS, 9283HM, 4539, E4539, 613757, 613777, SG402050, TSG402050

Frequently Asked Questions

What vehicles does the Stabilus 5B-9283HM fit?

It fits the 2001-2003 BMW 525I, 1997-2000 and 1979-1981 BMW 528I, 2001-2006 BMW 530I, 1997-2003 BMW 540I, and 2000-2003 BMW M5. Check the Buyer's Guide tab to confirm your vehicle.

How does the dynamic damping work?

A longitudinal groove pressed into the tube wall lets gas flow around the piston, controlling extension speed for a fluid motion that narrows toward the end of the stroke for a gentle, controlled stop.

What does the internal compression spring do?

It compresses when the lid is closed to give an added boost during initial opening, helping release the application from the latch mechanism.

Should I replace both lift supports at once?

For best results, replace in pairs. Installing a matched pair helps both sides support the trunk lid evenly and open with consistent motion.

What are signs this lift support needs replacing?

A trunk lid that drops, drifts down, feels weak on opening, or no longer stays up may indicate a worn gas lift support. Diagnose the cause before replacing.
