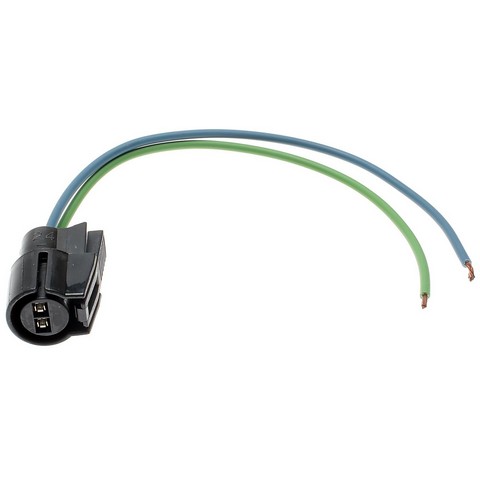

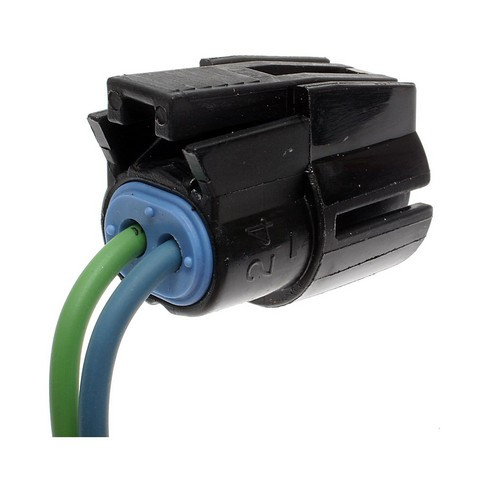

Give your A/C cycling switch a fresh, secure connection with the Standard Ignition A/C Cycling Switch Connector, part number S-536. This factory-assembled pigtail is a replacement for the listed applications and fits many vehicles, including the 1999-2013 Chevrolet Silverado 1500, 1985-2005 Chevrolet Astro and 2003-2013 Cadillac CTS. See the Buyer's Guide tab for the full list. It is also listed as an A/C clutch cycle switch connector and an A/C compressor connector.
The A/C cycling switch turns the compressor clutch on and off. This connector is the plug that joins that switch to the vehicle's wiring.
- Built to OE standards: Standard Ignition makes its components to exact OE standards in TS16949- and ISO9001-certified facilities, designed for specific vehicle applications.
- Tested throughout production: Each connector goes through thorough quality checks and rigorous testing at every stage of manufacturing.
- Factory-assembled: The connector arrives pre-assembled with its wiring harness attached, which simplifies installation.
- Chosen for conductivity: High-grade materials are used for conductivity and solid connections.

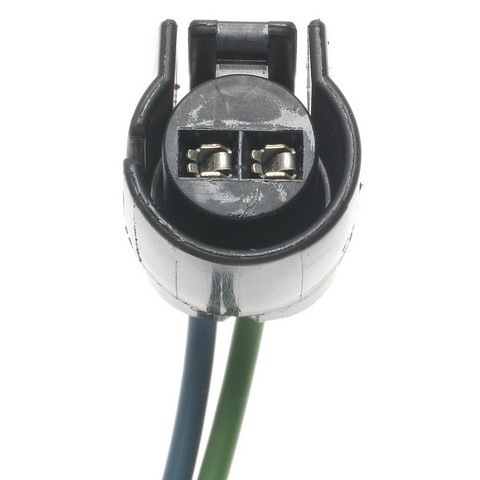

Specifications: Round plastic connector with 2 metal blade terminals. It has 2 wires in 18 gauge and a push-on attachment. The wiring harness is included. Splice connectors and a dust shield are not included. The package holds one connector, and the listed applications use one. Country of origin: Taiwan.
Signs this connector may need replacing include a cracked, melted or brittle connector body, corroded or loose terminals, damaged pigtail wires, or a compressor clutch that engages intermittently. If a damaged connector is the cause, the S-536 replaces the plug and pigtail. Diagnose the A/C system before replacing parts, and follow the vehicle service information for joining the pigtail leads.
Interchange: PT760 · 230 · ACC200
