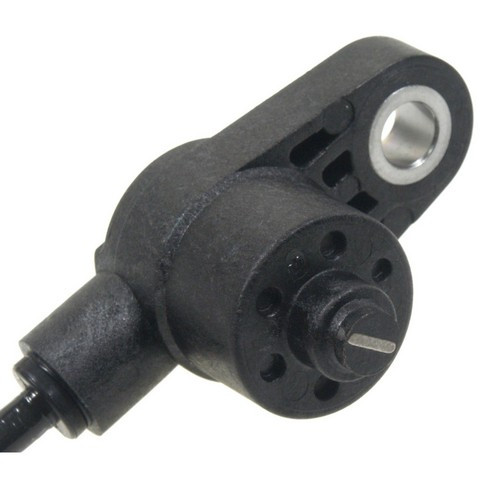

Standard Ignition ALS1006 front left ABS wheel speed sensor for the 2002-2006 Acura RSX reports wheel speed to the ABS module. The module uses that signal to watch for wheel lockup under braking.
- Synthetic material construction made to withstand harsh operating conditions
- Grommets and wire clips on the harness for proper mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1006 ABS wheel speed sensor
- Fits: 2002-2006 Acura RSX
- Position: Front left
- Material: Synthetic material
- Condition: New
A lit ABS or traction control light can mean a wheel speed sensor has failed, though a damaged harness or connector can light it too. Before replacing the sensor, look over the connector and wire for cracks, chafing or corrosion with the engine off; a shop can read the ABS codes to confirm the cause. This listing is one sensor for the front left wheel, and the 2002-2006 Acura RSX takes one there; the front right takes its own.
Fits
This sensor is a direct-fit replacement for the front left wheel of the 2002-2006 Acura RSX.
Specifications
Fit and size
- Position: Front left
- Quantity per application: 1
- Harness length: 24.25 in (610 mm)
- Number of bolt holes: 2
Build and materials
- Construction: Synthetic material

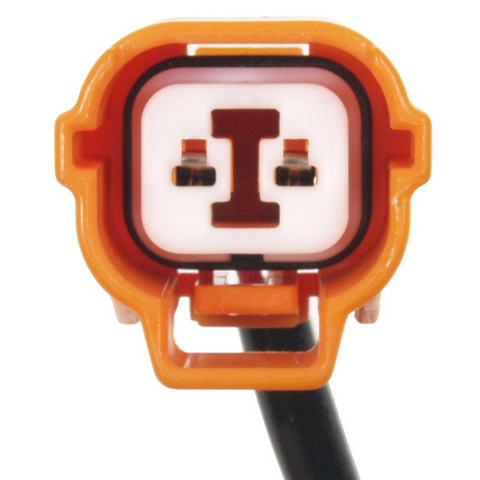

- Connector: 1 square male connector, sealed
- Terminals: 2, blade type, female
- Condition: New
- Country of origin: China
In the box
One wheel speed sensor with its harness. Mounting hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition ALS1006 fit the 2002-2006 Acura RSX?
Yes. Standard Ignition ALS1006 is made for the front left wheel of the 2002-2006 Acura RSX. The front right wheel takes a separate sensor.
Do I need new fasteners for this Standard Ignition ABS wheel speed sensor?
Yes. Standard Ignition ALS1006 comes without mounting hardware, and old fasteners may not be reusable, so plan on new ones. The harness already carries grommets and wire clips.
How long is the harness on this front left sensor?
The harness is 24.25 in (610 mm) long. The connector is a square male type with two blade terminals.
What can a failing front left wheel speed sensor cause?
It can turn on the ABS and traction control warning lights, and a shop can read the stored code with a scan tool.
Is the connector on the ALS1006 sealed?
Yes. The ALS1006 uses a sealed connector for protection in harsh conditions, and the sensor is tested on vehicles for correct integration with electronic safety systems.
