Standard Ignition ALS1061 front right ABS wheel speed sensor for the 1989-1992 Toyota Cressida reports wheel speed to the ABS. The system uses that signal to catch a wheel that is starting to lock up.
- Synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector for protection in harsh conditions
Quick facts

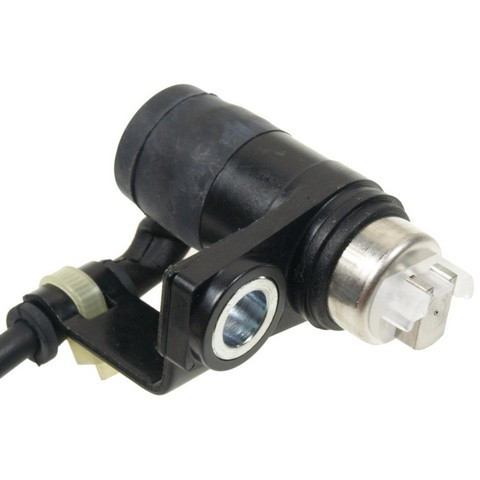

- Part: Standard Ignition ALS1061 ABS wheel speed sensor
- Fits: 1989-1992 Toyota Cressida
- Position: Front right
- Condition: New
An ABS or traction control warning light can mean a wheel speed sensor has stopped sending a signal, but damaged wiring or a connector can give the same light. With the engine off, look over the harness and connector for chafing, cracks or corrosion before you replace the sensor. This front right position takes one sensor; the front left side is a separate part ordered on its own.
Fits
Engineered specifically for Toyota vehicles, this Standard Ignition ABS wheel speed sensor is a direct-fit replacement for the 1989-1992 Toyota Cressida.
Specifications
Fit and size
- Position: front right
- Mounting location: wheel
- Quantity per vehicle: 1
- Number of bolt holes: 2
- Harness length: 22 in (558.8 mm)
- Terminals: 2, female blade
Build and materials
- Connector: 1, rectangular, male, sealed
- Condition: New
- Country of origin: Japan
In the box
One front right ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: ABS1171 · ABSC20650 · 531602 · 8954222030 · 8954222050 · 8954222051
This part cross-references / interchanges with the following part numbers:
ABS1171, ABSC20650, 531602, ALS1061, 8954222030, 8954222050, 8954222051
Frequently Asked Questions
Is this Standard Ignition ALS1061 sensor right for the 1989-1992 Toyota Cressida?
Yes. Standard Ignition ALS1061 is a front right ABS wheel speed sensor made for the 1989-1992 Toyota Cressida. The front left side takes a separate part.
Does the ALS1061 sensor come with mounting bolts?
No. Mounting hardware is not included, so plan on new bolts for the two bolt holes. The harness does carry location grommets and wire clips.
How long is the harness on this ABS sensor?
The Standard Ignition ALS1061 harness is 22 inches (558.8 mm) long. It ends in a rectangular male connector with two female blade terminals.
What can a failing front right wheel speed sensor look like?
An ABS or traction control warning light can come on. Damaged wiring or a connector can cause the same light, so a shop can scan the system to find the cause.
Does the ALS1061 sensor interchange with 8954222030?
Yes. 8954222030 is one of the numbers this sensor replaces, along with 8954222050, 8954222051, ABS1171, ABSC20650 and 531602.
