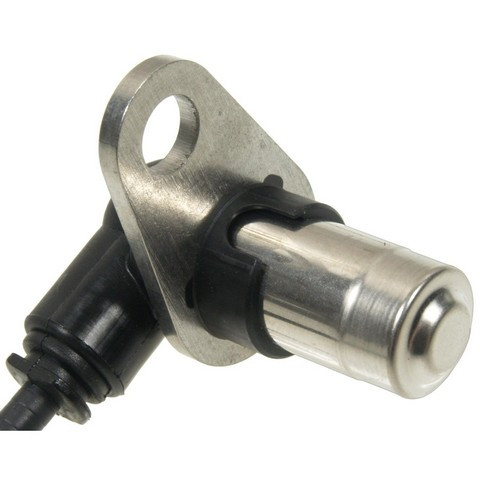

Standard Ignition ALS1176 rear right ABS wheel speed sensor for the 2004-2011 Mazda RX-8 reads wheel rotation and passes the signal to the ABS.
A lit ABS or traction control warning light can mean a wheel speed sensor has failed. Damaged wiring, a worn wheel bearing or a damaged tone ring can be behind that light too, so find the cause before buying. This listing is one sensor: the rear right position takes one, and the rear left side is its own part.
It is a direct-fit replacement for the 2004-2011 Mazda RX-8.
Fit and size
Build and materials
One rear right ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones.
Interchange: ABS1286 · SU12423 · 531706 · F1514371Y
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Standard Ignition ALS1176 fit the rear right of a 2004-2011 Mazda RX-8?
Yes. Standard Ignition ALS1176 is a rear right ABS wheel speed sensor listed for the 2004-2011 Mazda RX-8. The rear left side is a separate part.
Does this Standard Ignition ABS wheel speed sensor come with mounting bolts?
No. Mounting hardware is not included, though the harness carries grommets and wire clips for mounting and routing. Plan on new bolts.
How long is the harness on the ALS1176 sensor?

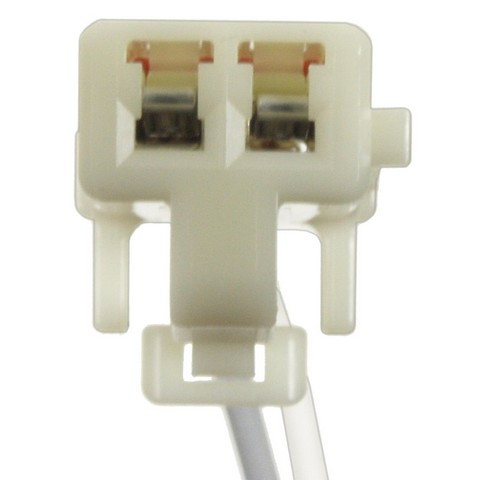

The Standard Ignition ALS1176 harness is 38 inches (960 mm) long. It ends in one rectangular male connector with two female blade terminals.
Can a bad rear right wheel speed sensor set off the ABS light?
Yes, an ABS or traction control warning light is a common sign of a failed wheel speed sensor. Because ABS is a safety system, have the light looked at promptly.
Is 531706 a cross-reference for this sensor?
Yes. 531706 is listed as an interchange number for this sensor, which Standard Ignition sells under ALS1176.
