Rear Left ABS Wheel Speed Sensor for 1996 Mazda Protege - Standard Ignition ALS1209

$464.99

Vehicles this part fits

    Part number: ALS1209
    UPC: 707390693934
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $464.99
    Adding to cart… The item has been added

    Have questions?

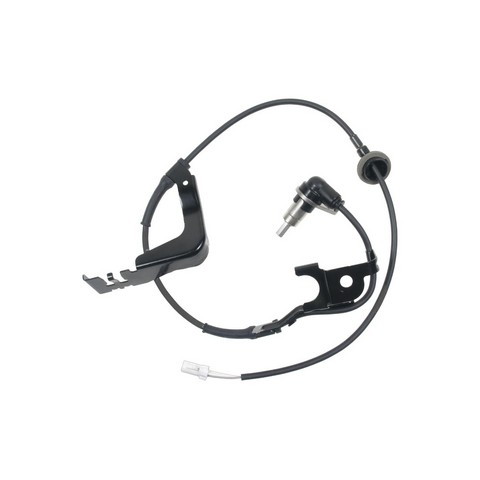

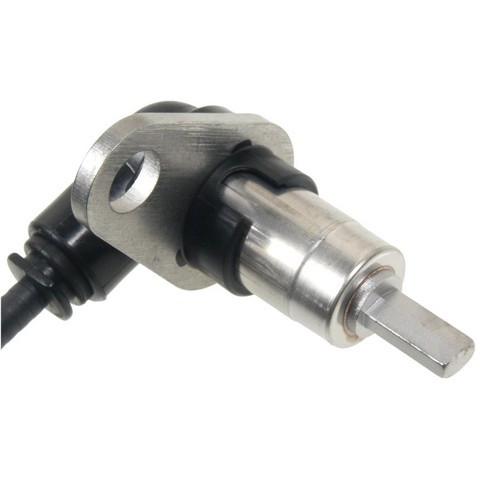

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1209
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1209
    $464.99
    $464.99

    Standard Ignition ALS1209 rear left ABS wheel speed sensor for the 1996 Mazda Protege reads how fast the wheel turns and reports it to the ABS. The system uses that signal to spot a wheel that is slowing faster than the others.

    • Synthetic material made to withstand harsh operating conditions
    • Location grommets and wire clips on the harness for proper mounting and routing
    • Sealed connector that protects against harsh conditions
    • Tested on vehicles for proper fit and correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS1209 ABS wheel speed sensor
    • Fits: 1996 Mazda Protege
    • Position: Rear left
    • Condition: New

    An ABS or traction control warning light can mean a wheel speed sensor has stopped sending a signal. If this sensor is the cause, it replaces the faulty one. A lit light alone does not prove the sensor is at fault, since a damaged tone ring is another common cause.

    Fits

    This sensor is a direct-fit replacement for the 1996 Mazda Protege. The listing is one sensor for the rear left wheel; the rear right wheel takes its own.

    Specifications

    Fit and size

    • Position: rear left
    • Mounting location: wheel
    • Quantity per application: 1
    • Number of bolt holes: 2
    • Harness length: 34 in (867 mm)
    • Connector: 1 rectangular, male
    • Terminals: 2 blade, female

    Build and materials

    • Material: synthetic
    • Condition: new
    • Mounting hardware: not included
    • Country of origin: Japan

    In the box

    One rear left ABS wheel speed sensor. Mounting hardware is not included, so plan on new mounting bolts.

    Interchange: ABS1319 · ABSD30973 · 531729 · BC1M4372YD · BC4C4372YA

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS1319, ABSD30973, 531729, BC1M4372YD, BC4C4372YA, ALS1209

    Frequently Asked Questions

    Does the Standard Ignition ALS1209 fit the 1996 Mazda Protege?

    Yes. Standard Ignition ALS1209 is listed for the 1996 Mazda Protege as the rear left sensor. The rear right side is ordered separately.

    Do I need new bolts for this rear left ABS wheel speed sensor?

    Mounting hardware is not included, so plan on new bolts for the two bolt holes. The sensor harness does come with location grommets and wire clips.

    How long is the harness on the ALS1209 sensor?

    The Standard Ignition ALS1209 harness is 34 inches (867 mm) long. It ends in a rectangular connector with two blade terminals.

    How do I know if a rear left ABS wheel speed sensor is failing?

    An ABS or traction control warning light is the sign a driver usually sees. A shop can read the stored codes to show which wheel's sensor is involved.

    Does the ALS1209 sensor replace ABS1319?

    Yes. ABS1319 is one of the numbers this sensor replaces, along with ABSD30973, 531729, BC1M4372YD and BC4C4372YA.
