Front Left ABS Wheel Speed Sensor for 2006-2013 Suzuki Grand Vitara - Standard Ignition ALS1403

$200.99

Vehicles this part fits

    Part number: ALS1403
    UPC: 707390865720
    Condition: New
    Weight: 6.12 LBS
    Item Package Quantity: 1
    $200.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1403
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1403
    $200.99
    $200.99

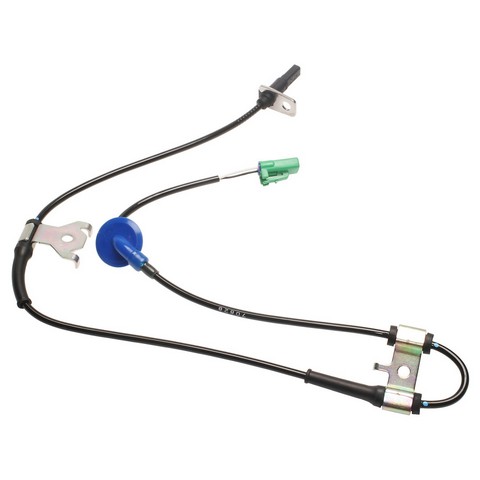

    Standard Ignition ALS1403 front left ABS wheel speed sensor for the 2006-2013 Suzuki Grand Vitara reads wheel rotation and sends that signal to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Suzuki vehicles.

    • Synthetic construction made to withstand harsh operating conditions
    • Grommets and wire clips come on the harness for correct mounting and routing
    • Sealed connector for protection in harsh conditions
    • Tested on vehicles for fit and correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS1403 ABS wheel speed sensor
    • Fits: 2006-2013 Suzuki Grand Vitara
    • Position: Front left
    • Condition: New

    An ABS warning light can mean a wheel speed sensor has stopped reporting, and the traction control light may come on with it. These signs alone do not prove this sensor is the problem; damaged wiring is another common cause. The front axle takes one sensor on each side, and this listing is the front left.

    Fits

    This sensor is a direct-fit replacement for the 2006-2013 Suzuki Grand Vitara.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per vehicle: 1
    • Mounting location: spindle
    • Number of bolt holes: 3
    • Harness length: 32 in (812.8 mm)

    Build and materials

    • Construction: synthetic material

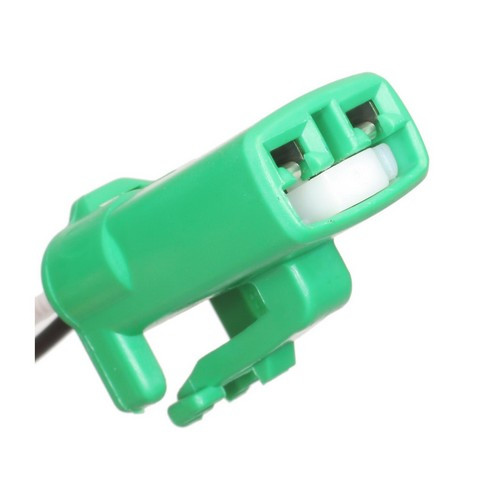

    • Connector: square, male, 1 connector
    • Terminals: 2 female blade terminals
    • Condition: new
    • Country of origin: China

    In the box

    One ABS wheel speed sensor. Mounting hardware is not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition ALS1403 fit the 2006-2013 Suzuki Grand Vitara?

    Yes. The Standard Ignition ALS1403 is the front left ABS wheel speed sensor for the 2006-2013 Suzuki Grand Vitara, whatever the engine.

    Does this front left ABS wheel speed sensor come with mounting bolts?

    No. Mounting hardware is not included, so plan on new bolts. The harness does carry grommets and wire clips for mounting and routing.

    How long is the harness on this ABS wheel speed sensor?

    The harness is 32 inches (812.8 mm) long. It ends in a square male connector holding two female blade terminals.

    Which warning lights can come on with a bad front left ABS sensor?

    An ABS warning light can come on, and some cars also light the traction control lamp. A shop can read the stored codes to see which wheel's sensor reported the fault.

    Where does the Standard Ignition ALS1403 ABS sensor mount?

    The Standard Ignition ALS1403 mounts at the spindle and has three bolt holes. The mounting bolts are not included.
