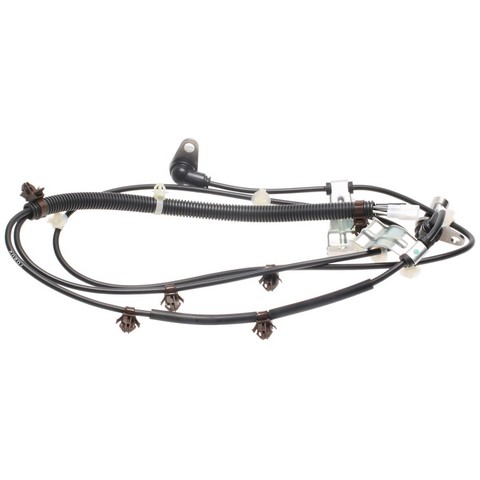

Standard Ignition ALS1411 rear ABS wheel speed sensor for the 1999-2004 Suzuki Grand Vitara and other vehicles reads wheel rotation for the ABS. It is engineered specifically for Suzuki vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Tested on vehicles for proper fit and correct integration with electronic safety systems
- Sealed connectors for protection from harsh conditions
Quick facts
- Part: Standard Ignition ALS1411 ABS wheel speed sensor
- Fits: 1999-2004 Suzuki Grand Vitara and other vehicles
- Position: Rear
- Condition: New
A lit ABS warning light can come from a failed wheel speed sensor, but it can also come from damaged wiring, a loose connector or a damaged sensor ring. Before you replace this sensor, rule out those first.
Fits
This listing is one sensor for the rear. It fits the 1999-2004 Suzuki Grand Vitara and the 1999-2004 Suzuki Vitara, and each of them takes two.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Mounting location: Spindle
- Number of bolt holes: 1
- Harness length: 75 in (1905 mm)
Build and materials
- Construction: Synthetic material
- Connectors: 2, rectangular, male
- Terminals: 4, blade, female
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor with its harness, grommets and wire clips. Mounting hardware is not included, so plan on a new mounting bolt, as the old one may not be reusable.
Installation notes
- The grommets and wire clips on the harness sit in OE locations for mounting and routing the wire.
Interchange: ABS1521 · SU12805 · 531886 · 5631065D00 · 5631067D00
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1521, SU12805, 531886, ALS1411, 5631065D00, 5631067D00
Frequently Asked Questions
Does the Standard Ignition ALS1411 fit the 1999-2004 Suzuki Vitara?
Yes. Standard Ignition ALS1411 fits the 1999-2004 Suzuki Vitara and the 1999-2004 Suzuki Grand Vitara, and each takes two.
Is this Standard Ignition ABS wheel speed sensor sold as a single piece?
Yes. This listing is one rear sensor, and the vehicle takes two.
Does the Standard Ignition ALS1411 come with grommets and clips, or do I need a new mounting bolt?
The ALS1411 harness has OE location grommets and wire clips, but mounting hardware is not included. Plan on a new bolt, since the old one may not be reusable.
How long is the harness on this rear ABS sensor, and what connectors does it have?
The harness is 75 in (1905 mm) long. It has two rectangular male connectors and four female blade terminals.
Why is my ABS light on, and could a wheel speed sensor be the reason?
An ABS warning light can come from a wheel speed sensor, its wiring or a connector problem. A shop can read the codes to see which one is involved.
