Rear Right ABS Wheel Speed Sensor for 2006-2015 Mazda MX-5 Miata & More - Standard Ignition ALS1739

$179.99

Vehicles this part fits

    Part number: ALS1739
    UPC: 025623403120
    Condition: New
    Weight: 1.22 LBS
    Item Package Quantity: 1
    $179.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1739
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1739
    $179.99
    $179.99

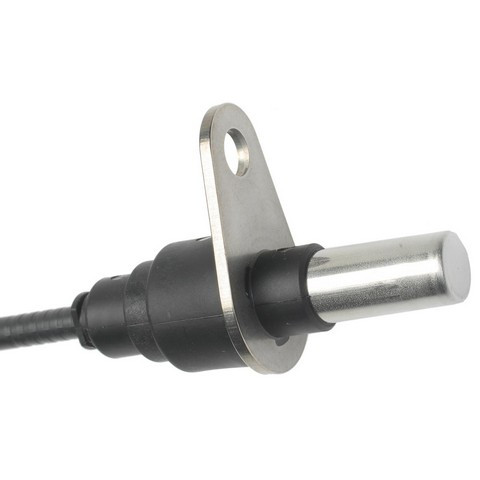

    Standard Ignition ALS1739 rear right ABS wheel speed sensor for the 2006-2015 Mazda MX-5 Miata and other vehicles senses wheel rotation for the ABS. The ABS uses this reading to track how fast the wheel turns.

    • Synthetic material made to withstand harsh operating conditions
    • Location grommets and wire clips on the harness for proper mounting and routing
    • Tested on vehicles for proper fit and correct integration with electronic safety systems
    • Sealed connector for protection in harsh conditions

    Quick facts

    • Part: Standard Ignition ALS1739 ABS wheel speed sensor
    • Fits: 2006-2015 Mazda MX-5 Miata and other vehicles
    • Position: Rear right

    A lit ABS warning light can mean this sensor is worn or failing, though damaged sensor wiring or a damaged tone ring can sit behind the same light, so trace the fault before you replace the sensor.

    Fits

    This sensor is a direct-fit replacement for the 2006-2015 Mazda MX-5 Miata and the 2006-2008 Mazda MX-5.

    Specifications

    Fit and size

    • Position: rear right
    • Quantity per vehicle: 1
    • Mounting location: axle
    • Bolt holes: 1
    • Harness length: 33.3 in (847 mm)
    • Connectors: 1, with 2 female blade terminals

    Build and materials

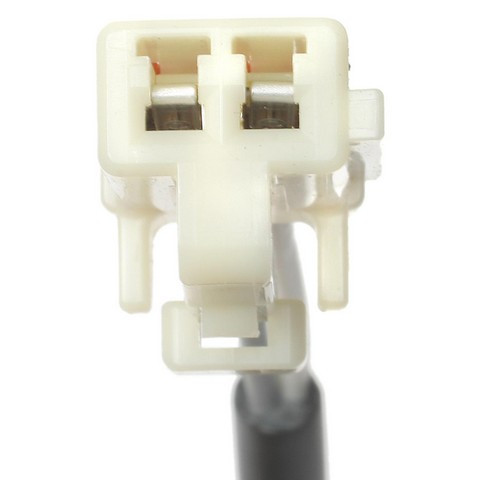

    • Connector: rectangular, female, sealed
    • Country of origin: China

    In the box

    One rear right ABS wheel speed sensor with its harness. This wheel takes one sensor, and the rear left is a separate part. Mounting hardware is not included, and the old bolt may not be reusable, so plan on a new one.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition ALS1739 fit a 2006-2015 Mazda MX-5 Miata?

    Yes. Standard Ignition ALS1739 is the rear right sensor for the 2006-2015 Mazda MX-5 Miata, and the 2006-2008 Mazda MX-5 is also on its fitment.

    Which wheel does this Standard Ignition ABS wheel speed sensor go on?

    Standard Ignition ALS1739 goes on the rear right wheel, which takes one sensor. The rear left wheel uses its own sensor, ordered separately.

    Do I need a new mounting bolt for this rear right ABS wheel speed sensor?

    Yes. Mounting hardware is not included, so plan on a new bolt for the sensor's single bolt hole.

    How long is the harness on this ABS wheel speed sensor, and what connector does it use?

    The harness is 33.3 in (847 mm) long. It ends in a sealed rectangular female connector with two female blade terminals.

    Can a failing rear right ABS wheel speed sensor turn on the ABS light?

    Yes, it can. An ABS warning light is one sign and a traction control light is another; a shop can scan the system to find which wheel's signal is missing.
